3D Solder Paste Inspection SPI

● 3D solder paste inspection based on white-lightsine stripe PMP technology;
● Solder paste height inspection accuracy reaches 1 um;

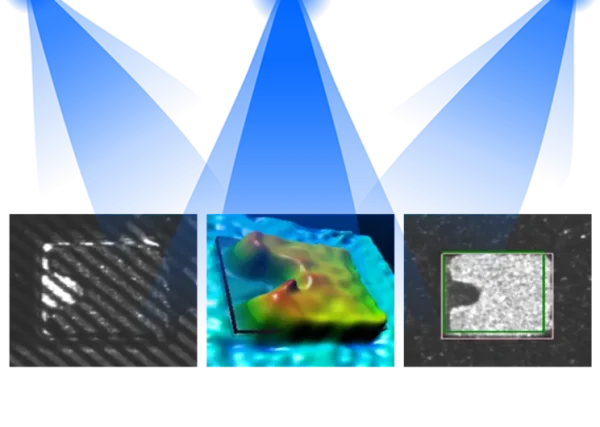

● Auto-restore pad 3D data on PCB surface, calculate thevolume, area, height and deviation of every solder

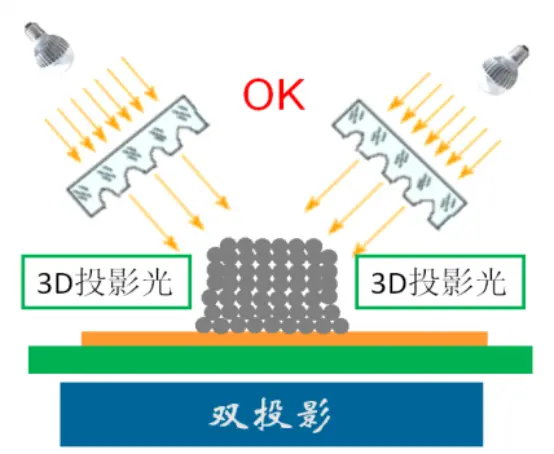

● Multi-direction,multi-angle 3D PMP inspection;

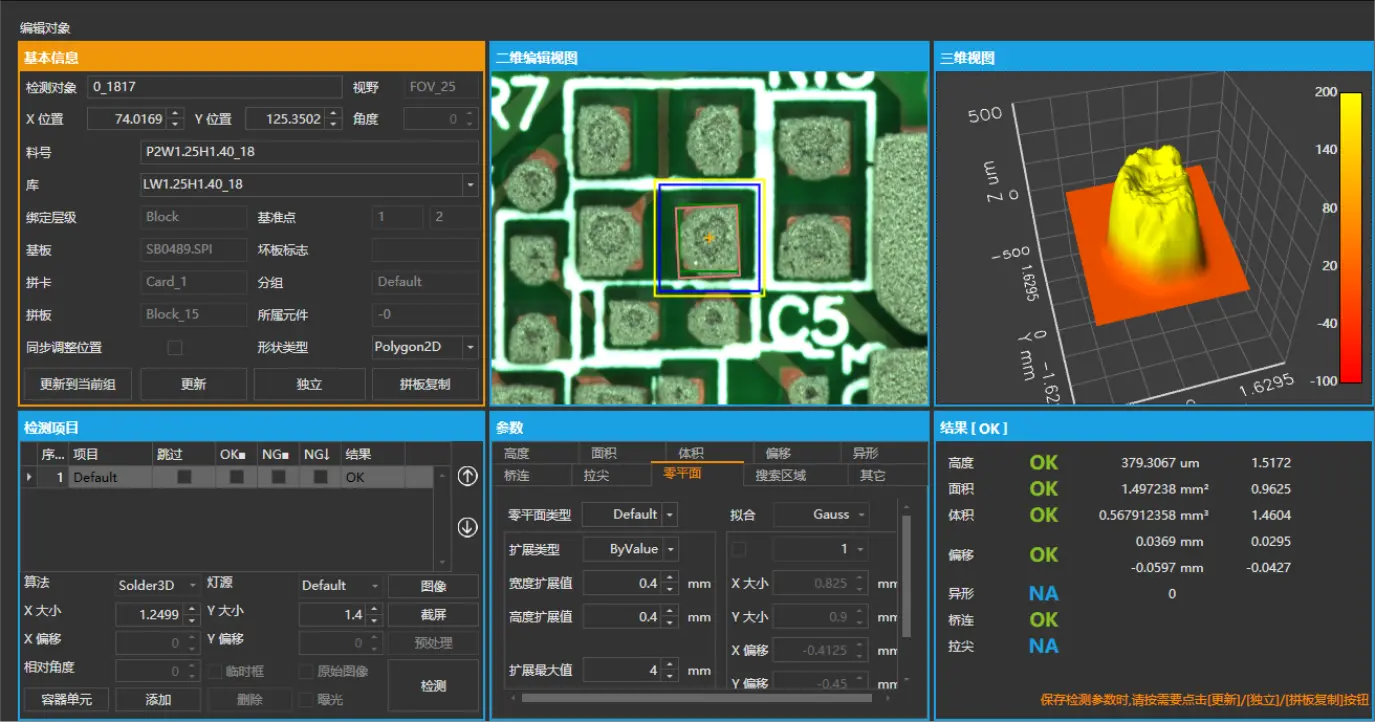

● Vivid and easy to used graphic interaction interface, comprehensive function and easy to handle;

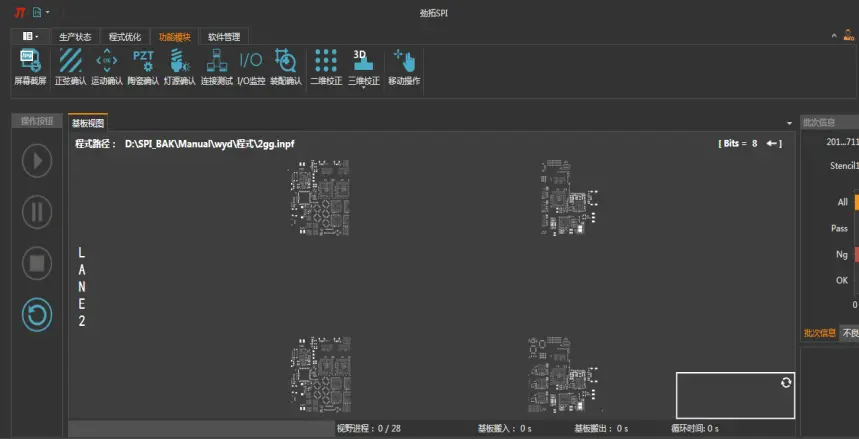

● In addition to programming with Gerber file, image-oriented edit mode can also realize off-lineprogramming and debugging;

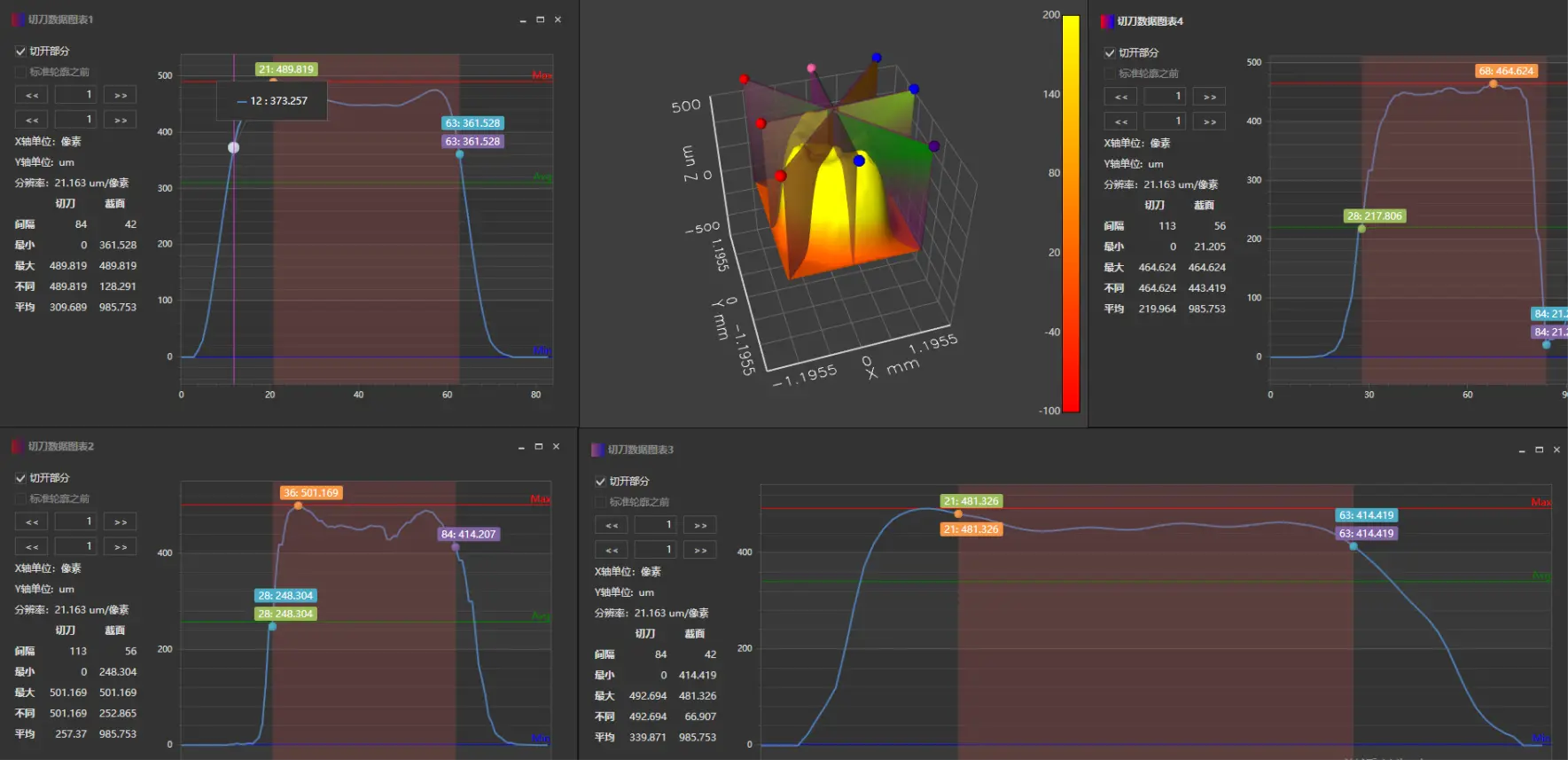

● Multi-touch function can realize 3D image rotationand 2D image resizing, convenient to check and confirm solder paste condition;

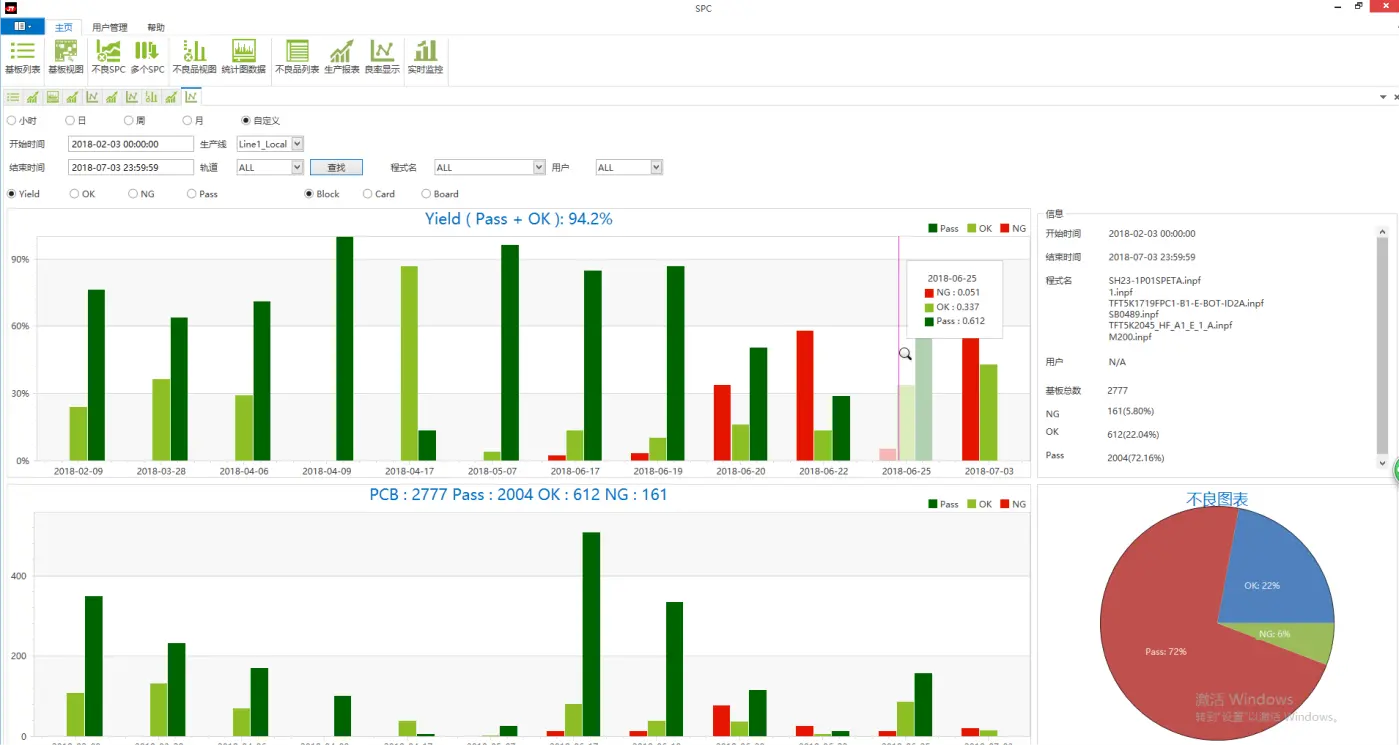

● Comprehensives SPC function includes manykind of diagrams generation and output;
● Image accelerate calculations base on multi-GPU;
● Integrated cast iron frame structure, highrigidity can avoid outside vibration

Share to:

Model REFINE-XS
Inspection Module
Camera Specification 5M High-frequency Industrial Camera, High Frame Number (Factory Setting); 12M Option
Pixel 20μm, 15μmꢀ(Factory Setting)
FOV(single field of view) Range 40×40 mm, 30×30 mm (Factory Setting)
LED RGB + TOP
Light Source 0 – 550 μm
Height Inspection Resolution 0.36 μm
Height Inspection Accuracy 1μm (Based on the actual solder paste/calibration block)
Inspection Item Volume, Area, Height, X/Y Position, Bridging, Shape, etc
Defective Type Excessive/Insufficient/Missing paste,Bridge,2D & 3D Paste displacement, Shape deformity, Dust, etc
Repeatability (Volume, Area, Height) <1% @3sigma
GR & R (Gauge Reproducebility and Repeatability) < 10% (@6sigma tolerance = +/- 50%)
Inspection Speed 0.35Sec / FOV
Conveyor & PCB Size
Max PCB Size 460×410 mm
Min PCB Size 50×50 mm
PCB Up-Clearance 30 mm
PCB Bottom-Clearance 30 mm
PCB Thickness 0.5-5 mm
Max PCB Warpage ±3 mm
PCB Transfer Height 2.5mm
PCB Transfer Height 900±20 mm
Max PCB Weight 5KG
Frame & Others
Base & Frame Integra1 steel casmting frame; firmly, ensure high accuracy of inspection
Dimensions and Weight 947x1321x1600mm (W x D x H) 950KG
Power Supply AC 220V 1Φ 50/60Hz
Power 2.2KW
Communication Interface SMEMA
Air Supply 4-6bar,5L/min
Operating Condition 5-40℃, 15-90% RH
Options
1. BarcodeReader 4. Repair Station (PC)
2. 3D Calibration Target 5. Infared Muti-touch LCD + Voice Control
3. 2D Calibration Glass 6. Offline Editing Software (License Key)
The above contents are subject to change without further notice!

REFINE-LS

Model REFINE-LS
Inspection Module
Camera Specification 5M High-frequency Industrial Camera, High Frame Number (Factory Setting); 12M Option
Pixel 20μm, 15μmꢀ(Factory Setting)
FOV(single field of view) Range 40×40 mm, 30×30 mm (Factory Setting)
LED RGB + TOP
Light Source 0 – 550 μm
Height Inspection Resolution 0.36 μm
Height Inspection Accuracy 1μm (Based on the actual solder paste/calibration block)
Inspection Item Volume, Area, Height, X/Y Position, Bridging, Shape, etc
Defective Type Excessive/Insufficient/Missing paste,Bridge,2D & 3D Paste displacement, Shape deformity, Dust, etc
Repeatability (Volume, Area, Height) <1% @3sigma
GR & R (Gauge Reproducebility and Repeatability) < 10% (@6sigma tolerance = +/- 50%)
Inspection Speed 0.35Sec / FOV
Conveyor & PCB Size
Max PCB Size 620×690 mm
Min PCB Size 50×50 mm
PCB Up-Clearance 30 mm
PCB Bottom-Clearance 30 mm
PCB Thickness 0.5-5 mm
Max PCB Warpage ±3 mm
PCB Transfer Height 2.5mm
PCB Transfer Height 900±20 mm
Max PCB Weight 5KG
Frame & Others
Base & Frame Integra1 steel casmting frame; firmly, ensure high accuracy of inspection
Dimensions and Weight 1157x1433x1548mm (W x D x H) 1070KG
Power Supply AC 220V 1Φ 50/60Hz
Power 2.2KW
Communication Interface SMEMA
Air Supply 4-6bar,5L/min
Operating Condition 5-40℃, 15-90% RH
Options
1. BarcodeReader 4. Repair Station (PC)
2. 3D Calibration Target 5. Infared Muti-touch LCD + Voice Control
3. 2D Calibration Glass 6. Offline Editing Software (License Key)
The above contents are subject to change without further notice!

REFINE-DL

<table style=”border-collapse: collapse; width: 1144px;” border=”0″ width=”1251″ cellspacing=”0″ cellpadding=”0″>
<tbody>
<tr style=”height: 26.00pt;”>
<td class=”et3″ style=”height: 26pt; width: 317.537px;” width=”372″ height=”34″>Model</td>
<td class=”et4″ style=”width: 823.474px;” width=”301″>REFINE-DL</td>
</tr>
<tr style=”height: 26.00pt;”>
<td class=”et5″ style=”height: 26pt; width: 317.537px;” width=”372″ height=”34″>Inspection Module</td>
<td class=”et5″ style=”width: 823.474px;” width=”301″>&nbsp;</td>
</tr>
<tr style=”height: 45.00pt;”>
<td class=”et4″ style=”height: 45pt; width: 317.537px;” width=”372″ height=”60″>Camera Specification</td>
<td class=”et4″ style=”width: 823.474px;” width=”879″>5M High-frequency Industrial Camera, High Frame Number (Factory Setting); 12M Option</td>
</tr>
<tr style=”height: 26.00pt;”>
<td class=”et4″ style=”height: 26pt; width: 317.537px;” width=”372″ height=”34″>Pixel</td>
<td class=”et4″ style=”width: 823.474px;” width=”879″>20&mu;m, 15&mu;mꢀ(Factory Setting)</td>
</tr>
<tr style=”height: 26.00pt;”>
<td class=”et4″ style=”height: 26pt; width: 317.537px;” width=”372″ height=”34″>FOV(single field of view) Range</td>
<td class=”et4″ style=”width: 823.474px;” width=”879″>40×40 mm, 30×30 mm (Factory Setting)</td>
</tr>
<tr style=”height: 26.00pt;”>
<td class=”et4″ style=”height: 26pt; width: 317.537px;” width=”372″ height=”34″>LED</td>
<td class=”et4″ style=”width: 823.474px;” width=”879″>RGB + TOP</td>
</tr>
<tr style=”height: 26.00pt;”>
<td class=”et4″ style=”height: 26pt; width: 317.537px;” width=”372″ height=”34″>Light Source</td>
<td class=”et4″ style=”width: 823.474px;” width=”879″>0 – 550 &mu;m</td>
</tr>
<tr style=”height: 26.00pt;”>
<td class=”et4″ style=”height: 26pt; width: 317.537px;” width=”372″ height=”34″>Height Inspection Resolution</td>
<td class=”et4″ style=”width: 823.474px;” width=”879″>0.36 &mu;m</td>
</tr>
<tr style=”height: 26.00pt;”>
<td class=”et4″ style=”height: 26pt; width: 317.537px;” width=”372″ height=”34″>Height Inspection Accuracy</td>
<td class=”et4″ style=”width: 823.474px;” width=”879″>1&mu;m (Based on the actual solder paste/calibration block)</td>
</tr>
<tr style=”height: 26.00pt;”>
<td class=”et4″ style=”height: 26pt; width: 317.537px;” width=”372″ height=”34″>Inspection Item</td>
<td class=”et4″ style=”width: 823.474px;” width=”879″>Volume, Area, Height, X/Y Position, Bridging, Shape, etc</td>
</tr>
<tr style=”height: 40.00pt;”>
<td class=”et4″ style=”height: 40pt; width: 317.537px;” width=”372″ height=”53″>Defective Type</td>
<td class=”et4″ style=”width: 823.474px;” width=”879″>Excessive/Insufficient/Missing paste,Bridge,2D &amp; 3D Paste displacement, Shape deformity, Dust, etc</td>
</tr>
<tr style=”height: 26.00pt;”>
<td class=”et4″ style=”height: 26pt; width: 317.537px;” width=”372″ height=”34″>Repeatability (Volume, Area, Height)</td>
<td class=”et4″ style=”width: 823.474px;” width=”879″>&lt;1% @3sigma</td>
</tr>
<tr style=”height: 46.00pt;”>
<td class=”et4″ style=”height: 46pt; width: 317.537px;” width=”372″ height=”61″>GR &amp; R (Gauge Reproducebility and Repeatability)</td>
<td class=”et4″ style=”width: 823.474px;” width=”879″>&lt; 10% (@6sigma tolerance = +/- 50%)</td>
</tr>
<tr style=”height: 26.00pt;”>
<td class=”et4″ style=”height: 26pt; width: 317.537px;” width=”372″ height=”34″>Inspection Speed</td>
<td class=”et4″ style=”width: 823.474px;” width=”879″>0.35Sec / FOV</td>
</tr>
<tr style=”height: 26.00pt;”>
<td class=”et5″ style=”height: 26pt; width: 317.537px;” width=”372″ height=”34″>Conveyor &amp; PCB Size</td>
<td class=”et5″ style=”width: 823.474px;” width=”301″>&nbsp;</td>
</tr>
<tr style=”height: 22.00pt;”>
<td class=”et4″ style=”height: 22pt; width: 317.537px;” width=”372″ height=”29″>Max PCB Size</td>
<td class=”et4″ style=”width: 823.474px;” width=”301″>620×320 mm</td>
</tr>
<tr style=”height: 24.00pt;”>
<td class=”et4″ style=”height: 24pt; width: 317.537px;” width=”372″ height=”32″>Min PCB Size</td>
<td class=”et6″ style=”width: 823.474px;” width=”879″>50×50 mm</td>
</tr>
<tr style=”height: 24.00pt;”>
<td class=”et4″ style=”height: 24pt; width: 317.537px;” width=”372″ height=”32″>PCB Up-Clearance</td>
<td class=”et6″ style=”width: 823.474px;” width=”879″>30 mm</td>
</tr>
<tr style=”height: 24.00pt;”>
<td class=”et4″ style=”height: 24pt; width: 317.537px;” width=”372″ height=”32″>PCB Bottom-Clearance</td>
<td class=”et6″ style=”width: 823.474px;” width=”879″>30 mm</td>
</tr>
<tr style=”height: 24.00pt;”>
<td class=”et4″ style=”height: 24pt; width: 317.537px;” width=”372″ height=”32″>PCB Thickness</td>
<td class=”et6″ style=”width: 823.474px;” width=”879″>0.5-5 mm</td>
</tr>
<tr style=”height: 24.00pt;”>
<td class=”et4″ style=”height: 24pt; width: 317.537px;” width=”372″ height=”32″>Max PCB Warpage</td>
<td class=”et4″ style=”width: 823.474px;” width=”879″>&plusmn;3 mm</td>
</tr>
<tr style=”height: 24.00pt;”>
<td class=”et4″ style=”height: 24pt; width: 317.537px;” width=”372″ height=”32″>PCB Transfer Height</td>
<td class=”et6″ style=”width: 823.474px;” width=”879″>2.5mm</td>
</tr>
<tr style=”height: 24.00pt;”>
<td class=”et4″ style=”height: 24pt; width: 317.537px;” width=”372″ height=”32″>PCB Transfer Height</td>
<td class=”et4″ style=”width: 823.474px;” width=”879″>900&plusmn;20 mm</td>
</tr>
<tr style=”height: 32.00pt;”>
<td class=”et4″ style=”height: 32pt; width: 317.537px;” width=”372″ height=”42″>Max PCB Weight</td>
<td class=”et4″ style=”width: 823.474px;” width=”879″>5KG</td>
</tr>
<tr style=”height: 33.00pt;”>
<td class=”et5″ style=”height: 33pt; width: 317.537px;” width=”372″ height=”44″>Frame &amp; Others</td>
<td class=”et5″ style=”width: 823.474px;” width=”301″>&nbsp;</td>
</tr>
<tr style=”height: 29.00pt;”>
<td class=”et4″ style=”height: 29pt; width: 317.537px;” width=”372″ height=”38″>Base &amp; Frame</td>
<td class=”et4″ style=”width: 823.474px;” width=”879″>Integra1 steel casmting frame; firmly, ensure high accuracy of inspection</td>
</tr>
<tr style=”height: 51.00pt;”>
<td class=”et4″ style=”height: 51pt; width: 317.537px;” width=”372″ height=”68″>Dimensions and Weight</td>
<td class=”et4″ style=”width: 823.474px;” width=”301″>1157x1572x1548mm (W x D x H) 1120KG</td>
</tr>
<tr style=”height: 29.00pt;”>
<td class=”et4″ style=”height: 29pt; width: 317.537px;” width=”372″ height=”38″>Power Supply</td>
<td class=”et4″ style=”width: 823.474px;” width=”879″>AC 220V 1&Phi; 50/60Hz</td>
</tr>
<tr style=”height: 29.00pt;”>
<td class=”et4″ style=”height: 29pt; width: 317.537px;” width=”372″ height=”38″>Power</td>
<td class=”et4″ style=”width: 823.474px;” width=”301″>2.7KW</td>
</tr>
<tr style=”height: 33.00pt;”>
<td class=”et4″ style=”height: 33pt; width: 317.537px;” width=”372″ height=”44″>Communication Interface</td>
<td class=”et7″ style=”width: 823.474px;” width=”879″>SMEMA</td>
</tr>
<tr style=”height: 18.75pt;”>
<td class=”et4″ style=”height: 18.75pt; width: 317.537px;” width=”372″ height=”25″>Air Supply</td>
<td class=”et4″ style=”width: 823.474px;” width=”879″>4-6bar,5L/min</td>
</tr>
<tr style=”height: 18.75pt;”>
<td class=”et4″ style=”height: 18.75pt; width: 317.537px;” width=”372″ height=”25″>Operating Condition</td>
<td class=”et4″ style=”width: 823.474px;” width=”879″>5-40℃, 15-90% RH</td>
</tr>
<tr style=”height: 18.75pt;”>
<td class=”et5″ style=”height: 18.75pt; width: 317.537px;” width=”372″ height=”25″>Options</td>
<td class=”et5″ style=”width: 823.474px;” width=”301″>&nbsp;</td>
</tr>
<tr style=”height: 18.75pt;”>
<td class=”et4″ style=”height: 18.75pt; width: 317.537px;” width=”372″ height=”25″>1. BarcodeReader</td>
<td class=”et4″ style=”width: 823.474px;” width=”879″>4. Repair Station (PC)</td>
</tr>
<tr style=”height: 18.75pt;”>
<td class=”et4″ style=”height: 18.75pt; width: 317.537px;” width=”372″ height=”25″>2. 3D Calibration Target</td>
<td class=”et4″ style=”width: 823.474px;” width=”879″>5. Infared Muti-touch LCD + Voice Control</td>
</tr>
<tr style=”height: 18.75pt;”>
<td class=”et4″ style=”height: 18.75pt; width: 317.537px;” width=”372″ height=”25″>3. 2D Calibration Glass</td>
<td class=”et4″ style=”width: 823.474px;” width=”879″>6. Offline Editing Software (License Key)</td>
</tr>
<tr style=”height: 30.00pt;”>
<td class=”et8″ style=”height: 30pt; width: 1141.01px;” colspan=”2″ width=”1251″ height=”40″>The above contents are subject to change without further notice!</td>
</tr>
</tbody>
</table>
