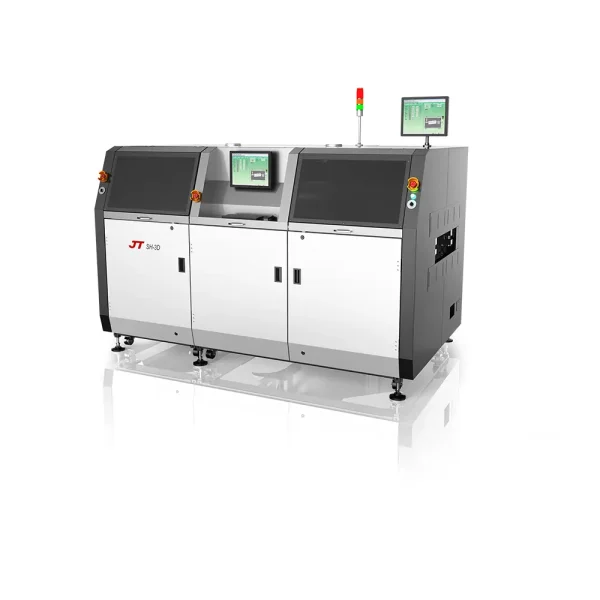

Name: SH-3D Integrated Selective Soldering

Model	SH-3D-450
Parameters
Dimension L×W×H	2600×1800×1650mm
Transporting System
PCB Width	60-450mm
PCB Length	120-500mm
PCB Top Space	Max：120mm
PCB Bottom Space	Max：60mm
PCB Edge Size	≥4mm
Conveyor Height	900±20
Conveying Speed	0.2-10m/min
PCB Weight	Max:5kg
Fluxer Module
Flux Capacity	2L
The Size of Flux Nozzle Tube	130um
Flux Width	2-8mm
Preheating Module
Bottom movable Infrared Heater	Max:13.5kw
Temperature Range	Room Temperature-250℃
Top Air Heater	Max：6KW
Soldering Module
Min Diameter of Solder Nozzle	Min:¢2.5/4.5mm~MAX:¢31/35mm
Wave Height	3-5mm
Solder Pot Capacity	Solenoid Pump13KG & Mechanical Pump 8KG
Soldering Temperature	Max：350℃
Heating Time	75min（Solenoid Pump）/45min（Mechanical Pump）(300℃）
Location Speed	X/Y：2-200mm/s ; Z：2-100mm/s
Temp.Control Accuraey	±2℃
Soldering Accuracy	±0.15mm
Control System
PC Operating System	Windows 10
Process Visualization	CCD Visual
Software Language	Chinese and English Changeable
Programming Mode	Inline/Off line Programming
Data Import	Gerber, Image Programming
Air System
N2 Consumption	Eachꢀconsumesꢀaboutꢀ1.5-2ꢀm³/h
N2 Concentration	≥99.999%
Electrical Parameter
Power Supply	3P5W,380VAC 50/60Hz
Consumption	35KW
Air Exhaust
Air Duct Diameter	¢200mm
Exhaust Air Rate	900m³/h

SH-3D Integrated Selective Wave Soldering
