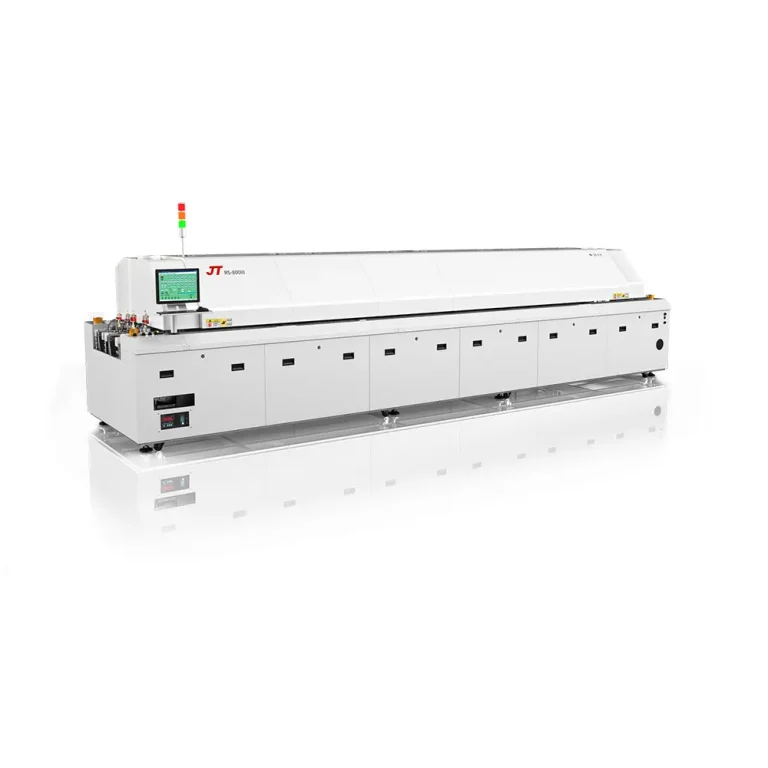

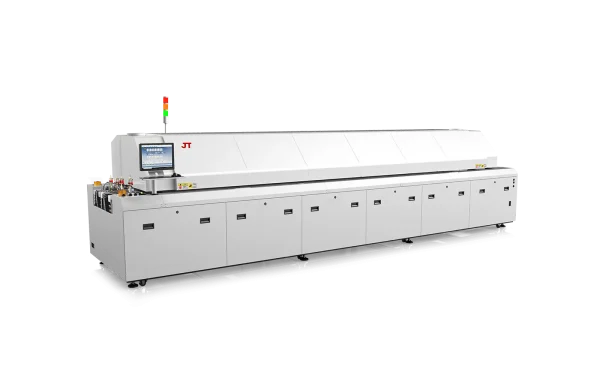

A PCB reflow oven is a precision thermal processing system designed for soldering surface-mount components onto printed circuit boards. Utilizing a multi-zone heating chamber, it executes carefully controlled temperature profiles – including preheat, thermal soak, reflow peak, and cooling phases – to ensure perfect solder joint formation. Modern versions employ advanced forced convection technology with nitrogen atmosphere options to prevent oxidation and improve wetting characteristics. These ovens feature intelligent temperature control systems with real-time monitoring and adaptive adjustment capabilities, making them indispensable in high-volume electronics manufacturing. Their compact yet efficient design accommodates various production scales while maintaining exceptional temperature uniformity (±1-2°C) across the entire PCB surface.
| MODEL | RS-600III/RS-600III-N |
| GENERAL | |
| Outside Dimension(L*W*H) | 4190 x 1430 x 1530mm |
| Weight | Approx. 1850KG/1950KG |
| Number Of Heating Zones | Up 6 / Bottom 6 |
| Length Of Heating Zones | 2295mm |
| Number Of Cooling Zones | Up 1 / Bottom 1 (Cool Air Conversion) |
| Exhaust Volume | 10 m³ / min x 2 (Exhausts) |
| Control System | |
| Electric Supply Required | 3 phase, 380V 50/60Hz (Optional: 3 phase, 400V/480V 50/60Hz ) |
| Electric Power Required | 48KW / 51KW |
| Power For Warm Up | 24KW / 26KW |
| Power Consumption | 6.5KW / 7KW |
| Warming Time | Approx. 20 minute |
| Temp. Setting Range | Room Temp. — 300℃ |
| Temperature Control Method | PID Close Loop Control + SSR Driving |
| Temperature Control Precision | ± 1.0℃ |
| Temperature Deviation on PCB | ± 1.5℃ (by JT Board Test Standard) |
| Commutated Element | Aluminium Alloy Plate |
| Data Storage | Various prameters and status are storable (80GB) |
| Abnormal Alarm | Abnormal Temperature (Extra-high / Extra-low Temp.) |
| Board Dropped Alarm | Tower Light: Yellow–Warming; Green-Normal; Red-Abnormal |
| Conveyor System | |
| Rail Structure | Subsection Integrated Type (Option ： Subsection Separate Control) |
| Max.Width Of PCB | 400mm (OPTION ：460mm) |
| Range Of Rail Width/Adjustment | 50~400mm / Motorized |
| Components Clearance | PCB Top 30mm/ Bottom 25mm |
| Converyor Direction | L→R (Option: R→L) |
| Fixed Rail Side | Front Rail Fixed (Option:Rear Rail Fixed) |
| PCB Transmission Agent | Air-Reflow =Chain + Mesh , ( N2-Reflow = Chain only and Mesh optional) |
| Converyor Height | 900±20mm |
| Converyor Speed Range | 300～2000mm/min |
| Lubrication Auto-Afflux | Standard |
| Cooling System | |
| Cooling Method | Standard：Forced-Air Type |
Notes: D：Dual rails，Fixed mode is optional,the max width of PCB is 250*250mm；N：Nitrogen；L：the max width of PCB is 610mm
The above contents are subiect to change without further notice.
