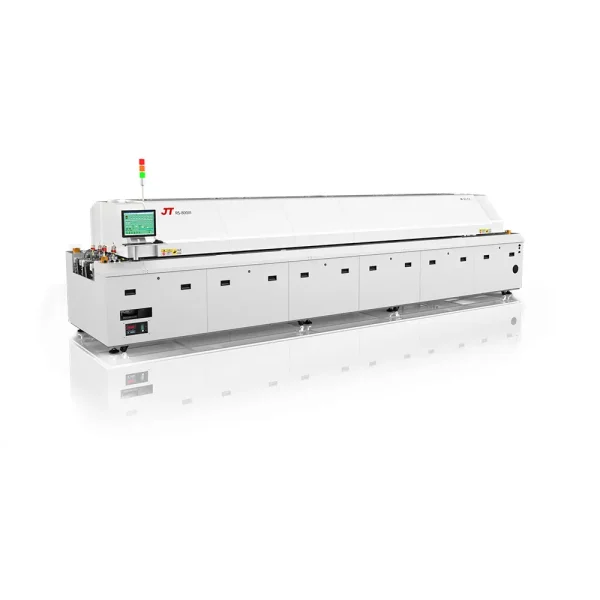

RS Series Lead Free Hot Air Reflow Oven

● Independent Air Velocity Controlling by section can achieve flexibleprocessing adjustment, therefore dealing with various & complicated Lead Free Processing easily;
● New Cooling Configuration to make the filteredor reclaimed air back to oven chamber, it reduced the thermal loss as well as get better flux reclamation;
● Longer maintenanceperiod for oven chamber;
●New Air Management System withsignificant energy save, lower electric power consumption & lower carbon;
● The chambers with multi-layers and thicker thermalinsulation to attain the lower temp. of oven surface.
● 95 % Materials of Reflow Oven can be recycled.

Share to:


MODEL RS-600III/RS-600III-N
GENERAL
Outside Dimension(L*W*H) 4190 x 1430 x 1530mm
Weight Approx. 1850KG/1950KG
Number Of Heating Zones Up 6 / Bottom 6
Length Of Heating Zones 2295mm
Number Of Cooling Zones Up 1 / Bottom 1  (Cool Air Conversion)
Exhaust Volume 10 m³ / min x 2 (Exhausts)
Control System
Electric Supply Required 3 phase, 380V 50/60Hz    (Optional: 3 phase, 400V/480V 50/60Hz )
Electric Power Required 48KW / 51KW
Power For Warm Up 24KW / 26KW
Power Consumption 6.5KW / 7KW
Warming Time Approx. 20 minute
Temp. Setting Range Room Temp. —  300℃
Temperature Control Method PID Close Loop Control + SSR Driving
Temperature Control Precision ± 1.0℃
Temperature Deviation on PCB ± 1.5℃  (by JT Board Test Standard)
Commutated Element Aluminium Alloy Plate
Data Storage Various prameters and status are storable (80GB)
Abnormal Alarm Abnormal Temperature (Extra-high / Extra-low Temp.)
Board Dropped Alarm Tower Light: Yellow–Warming; Green-Normal; Red-Abnormal
Conveyor System
Rail Structure Subsection Integrated Type     (Option : Subsection Separate Control)
Max.Width Of PCB 400mm (OPTION :460mm)
Range Of Rail Width/Adjustment 50~400mm / Motorized
Components Clearance PCB Top 30mm/ Bottom 25mm
Converyor Direction  L→R      (Option: R→L)
Fixed Rail Side Front Rail Fixed (Option:Rear Rail Fixed)
PCB Transmission Agent Air-Reflow =Chain + Mesh ,
( N2-Reflow = Chain only and Mesh optional)
Converyor Height 900±20mm
Converyor Speed Range 300~2000mm/min
Lubrication Auto-Afflux Standard
Cooling System
Cooling Method   Standard:Forced-Air Type

Notes: D:Dual rails,Fixed mode is optional,the max width of PCB is 250*250mm;N:Nitrogen;L:the max width of PCB is 610mm
The above contents are subiect to change without further notice.

RS-600IIID/RS-600IIID-N

as JT provided : S = Standard, O = Option
MODEL RS-600IIID/RS-600IIID-N
GENERAL
Outside Dimension(L*W*H) 4190 x 1660 x 1530mm
Weight Approx. 2050KG/2150KG
Number Of Heating Zones Up 6 / Bottom 6
Length Of Heating Zones 2295mm
Number Of Cooling Zones Up 1 / Bottom 1  (Cool Air Conversion)
Exhaust Volume 10 m³ / min x 2 (Exhausts)
Control System
Electric Supply Required 3 phase, 380V 50/60Hz    (Optional: 3 phase, 400V/480V 50/60Hz )
Electric Power Required 48KW / 51KW
Power For Warm Up 26KW / 28KW
Power Consumption 7.5KW / 8KW
Warming Time Approx. 20 minute
Temp. Setting Range Room Temp. —  300℃
Temperature Control Method PID Close Loop Control + SSR Driving
Temperature Control Precision ± 1.0℃
Temperature Deviation on PCB ± 1.5℃  (by JT Board Test Standard)
Commutated Element Aluminium Alloy Plate
Data Storage Various prameters and status are storable (80GB)
Abnormal Alarm Abnormal Temperature (Extra-high / Extra-low Temp.)
Board Dropped Alarm Tower Light: Yellow–Warming; Green-Normal; Red-Abnormal
Conveyor System
Rail Structure Subsection Integrated Type     (Option : Subsection Separate Control)
Max.Width Of PCB Motorized
Each dual lanes width adjustable 50~250mm  or Single lane 50~490mm
Range Of Rail Width/Adjustment
Components Clearance PCB Top 30mm/ Bottom 25mm
Converyor Direction  L→R      (Option: R→L)
Fixed Rail Side Front Rail Fixed (Option:Rear Rail Fixed)
PCB Transmission Agent Air-Reflow =Chain + Mesh ,
( N2-Reflow = Chain only and Mesh optional)
Converyor Height 900±20mm
Converyor Speed Range 300~2000mm/min
Lubrication Auto-Afflux Standard
Cooling System
Cooling Method   Standard:Forced-Air Type

“Notes: D:Dual rails,Fixed mode is optional,the max width of PCB is 250*250mm;N:Nitrogen;L:the max width of PCB is 610mm
The above contents are subiect to change without further notice
”

RS-800III / RS-800III-N

  as JT provided : S = Standard, O = Option
MODEL RS-800III / RS-800III-N
GENERAL
Outside Dimension(L*W*H) 5520 x 1430x 1530mm
Weight Approx. 2400KG / 2500KG
Number Of Heating Zones Up 8 / Bottom 8
Length Of Heating Zones 3110mm
Number Of Cooling Zones Up 3 / Bottom 3  ( Cool Air Conversion)
Exhaust Volume  10 M3 / min x 2 (Exhausts)
Control System
Electric Supply Required 3 phase, 380V 50/60Hz    (Optional: 3 phase, 220V 50/60Hz )
Electric Power Required 64KW / 67KW
Power For Warm Up 30KW / 32KW
Power Consumption 9KW / 10KW
Warming Time 约 Approx. 25 minute
Temp. Setting Range Room Temp. —  300℃
Temperature Control Method PID Close Loop Control + SSR Driving
Temperature Control Precision ± 1.0℃
Temperature Deviation on PCB ± 1.5℃  (by JT Board Test Standard)
Commutated Element  Aluminium Alloy Plate
Data Storage Various prameters and status are storable
Abnormal Alarm  Abnormal Temperature (Extra-high / Extra-low Temp.)
Board Dropped Alarm Tower Light: Yellow–Warming; Green-Normal; Red-Abnormal
Conveyor System
Rail Structure Subsection Integrated Type     (Option : Subsection Separate Control)
Max.Width Of PCB 400mm    ( Option:  460mm )
Range Of Rail Width/Adjustment 50–400mm/  Motorized
Components Clearance PCB Top 30 / Bottom 25mm
Converyor Direction L→R      ( Option: R→L)
Fixed Rail Side Front Rail Fixed (Option:Rear Rail Fixed)
PCB Transmission Agent Air-Reflow =  Chain + Mesh ,
(N2-Reflow = Chain only and Mesh optional)
Converyor Height 900±20mm
Converyor Speed Range 300~2000mm/min
Lubrication Auto-Afflux Standard
Cooling System
Cooling Method   Standard:Forced-Air Type

Notes: D:Dual rails,Fixed mode is optional,the max width of PCB is 250*250mm;N:Nitrogen;L:the max width of PCB is 610mm
The above contents are subiect to change without further notice.

RS-1000III / RS-1000III-N

  as JT provided : S = Standard, O = Option
MODEL RS-1000III / RS-1000III-N
GENERAL
Outside Dimension(L*W*H) 6300 x 1430 x 1530mm
Weight Approx. 2700KG / 2800KG
Number Of Heating Zones Up 10 /  Bottom 10
Length Of Heating Zones 3890mm
Number Of Cooling Zones Up 3 / Bottom 3  ( Cool Air Conversion)
Exhaust Volume  10 M3 / min x 2 (Exhausts)
Control System
Electric Supply Required 3 phase, 380V 50/60Hz    (Optional: 3 phase, 220V 50/60Hz )
Electric Power Required 80KW / 83KW
Power For Warm Up 36KW / 38KW
Power Consumption 10KW / 11KW
Warming Time 约 Approx. 25 minute
Temp. Setting Range Room Temp. —  300℃
Temperature Control Method PID Close Loop Control + SSR Driving
Temperature Control Precision ± 1.0℃
Temperature Deviation on PCB ± 1.5℃  (by JT Board Test Standard)
Commutated Element  Aluminium Alloy Plate
Data Storage Various prameters and status are storable
Abnormal Alarm  Abnormal Temperature (Extra-high / Extra-low Temp.)
Board Dropped Alarm Tower Light: Yellow–Warming; Green-Normal; Red-Abnormal
Conveyor System
Rail Structure Subsection Integrated Type     (Option : Subsection Separate Control)
Max.Width Of PCB 400mm    ( Option:  460mm )
Range Of Rail Width/Adjustment 50–400mm/  Motorized
Components Clearance PCB Top 30 / Bottom 25mm
Converyor Direction L→R      ( Option: R→L)
Fixed Rail Side Front Rail Fixed (Option:Rear Rail Fixed)
PCB Transmission Agent Air-Reflow =  Chain + Mesh ,
(N2-Reflow = Chain only and Mesh optional)
Converyor Height 900±20mm
Converyor Speed Range 300~2000mm/min
Lubrication Auto-Afflux Standard
Cooling System
Cooling Method   Standard:Forced-Air Type

Notes: D:Dual rails,Fixed mode is optional,the max width of PCB is 250*250mm;N:Nitrogen;L:the max width of PCB is 610mm
The above contents are subiect to change without further notice.

RS-1200III / RS-1200III-N

  as JT provided : S = Standard, O = Option
MODEL RS-1200III / RS-1200III-N
GENERAL
Outside Dimension(L*W*H) 7050 x 1430 x 1530mm
Weight Approx.3000KG / 3100KG
Number Of Heating Zones Up 12 / Bottom 12
Length Of Heating Zones 4640mm
Number Of Cooling Zones Up 3 / Bottom 3  ( Cool Air Conversion)
Exhaust Volume  10 M3 / min x 2 (Exhausts)
Control System
Electric Supply Required 3 phase, 380V 50/60Hz    (Optional: 3 phase, 220V 50/60Hz )
Electric Power Required 93KW / 97KW
Power For Warm Up 40KW / 42KW
Power Consumption 11KW / 12KW
Warming Time 约 Approx. 25 minute
Temp. Setting Range Room Temp. —  300℃
Temperature Control Method PID Close Loop Control + SSR Driving
Temperature Control Precision ± 1.0℃
Temperature Deviation on PCB ± 1.5℃  (by JT Board Test Standard)
Commutated Element  Aluminium Alloy Plate
Data Storage Various prameters and status are storable
Abnormal Alarm  Abnormal Temperature (Extra-high / Extra-low Temp.)
Board Dropped Alarm Tower Light: Yellow–Warming; Green-Normal; Red-Abnormal
Conveyor System
Rail Structure Subsection Integrated Type     (Option : Subsection Separate Control)
Max.Width Of PCB 400mm    ( Option:  460mm )
Range Of Rail Width/Adjustment 50–400mm/  Motorized
Components Clearance PCB Top 30 / Bottom 25mm
Converyor Direction L→R      ( Option: R→L)
Fixed Rail Side Front Rail Fixed (Option:Rear Rail Fixed)
PCB Transmission Agent Air-Reflow =  Chain + Mesh ,
(N2-Reflow = Chain only and Mesh optional)
Converyor Height 900±20mm
Converyor Speed Range 300~2000mm/min
Lubrication Auto-Afflux Standard
Cooling System
Cooling Method   Standard:Forced-Air Type

Notes: D:Dual rails,Fixed mode is optional,the max width of PCB is 250*250mm;N:Nitrogen;L:the max width of PCB is 610mm
The above contents are subiect to change without further notice.

RS-800IIID / RS-800IIID-N

  as JT provided : S = Standard, O = Option
MODEL RS-800IIID / RS-800IIID-N
GENERAL
Outside Dimension(L*W*H) 5520 x 1660 x 1530mm
Weight Approx. 2750KG / 2850KG
Number Of Heating Zones Up 8 / Bottom 8
Length Of Heating Zones 3110mm
Number Of Cooling Zones Up 3 / Bottom 3  ( Cool Air Conversion)
Exhaust Volume  10 M3 / min x 2 (Exhausts)
Control System
Electric Supply Required 3 phase, 380V 50/60Hz    (Optional: 3 phase, 220V 50/60Hz )
Electric Power Required 64KW / 67KW
Power For Warm Up 32KW / 34KW
Power Consumption 10KW / 11KW
Warming Time Approx. 30 minute
Temp. Setting Range Room Temp. —  300℃
Temperature Control Method PID Close Loop Control + SSR Driving
Temperature Control Precision ± 1.0℃
Temperature Deviation on PCB ± 1.5℃  (by JT Board Test Standard)
Commutated Element  Aluminium Alloy Plate
Data Storage Various prameters and status are storable
Abnormal Alarm  Abnormal Temperature (Extra-high / Extra-low Temp.)
Board Dropped Alarm Tower Light: Yellow–Warming; Green-Normal; Red-Abnormal
Conveyor System
Rail Structure Subsection Integrated Type     (Option : Subsection Separate Control)
Max.Width Of PCB Motorized ;
Each dual lanes width adjustable 50~250mm  or Single lane 50~490mm
Range Of Rail Width/Adjustment
Components Clearance PCB Top 30 / Bottom 25mm
Converyor Direction L→R      ( Option: R→L)
Fixed Rail Side Front and Rear End Rails Fixed, 2 Central Rail adjustable.
PCB Transmission Agent Air-Reflow =  Chain + Mesh ,
(N2-Reflow = Chain only and Mesh optional)
Converyor Height 900±20mm
Converyor Speed Range 300~2000mm/min
Lubrication Auto-Afflux Standard
Cooling System
Cooling Method   Standard:Forced-Air Type

Notes: D:Dual rails,Fixed mode is optional,the max width of PCB is 250*250mm;N:Nitrogen;L:the max width of PCB is 610mm
The above contents are subiect to change without further notice.

RS-1000IIID / RS-1000IIID-N

  as JT provided : S = Standard, O = Option
MODEL RS-1000IIID / RS-1000IIID-N
GENERAL
Outside Dimension(L*W*H) 6300 x 1660 x 1530mm
Weight Approx. 3050KG / 3150KG
Number Of Heating Zones Up 10 / Bottom 10
Length Of Heating Zones 3890mm
Number Of Cooling Zones Up 3 / Bottom 3  ( Cool Air Conversion)
Exhaust Volume  10 M3 / min x 2 (Exhausts)
Control System
Electric Supply Required 3 phase, 380V 50/60Hz    (Optional: 3 phase, 220V 50/60Hz )
Electric Power Required 80KW / 83KW
Power For Warm Up 38KW / 40KW
Power Consumption 11KW / 12KW
Warming Time Approx. 30 minute
Temp. Setting Range Room Temp. —  300℃
Temperature Control Method PID Close Loop Control + SSR Driving
Temperature Control Precision ± 1.0℃
Temperature Deviation on PCB ± 1.5℃  (by JT Board Test Standard)
Commutated Element  Aluminium Alloy Plate
Data Storage Various prameters and status are storable
Abnormal Alarm  Abnormal Temperature (Extra-high / Extra-low Temp.)
Board Dropped Alarm Tower Light: Yellow–Warming; Green-Normal; Red-Abnormal
Conveyor System
Rail Structure Subsection Integrated Type     (Option : Subsection Separate Control)
Max.Width Of PCB Motorized ;
Each dual lanes width adjustable 50~250mm  or Single lane 50~490mm
Range Of Rail Width/Adjustment
Components Clearance PCB Top 30 / Bottom 25mm
Converyor Direction L→R      ( Option: R→L)
Fixed Rail Side Front and Rear End Rails Fixed, 2 Central Rail adjustable.
PCB Transmission Agent Air-Reflow =  Chain + Mesh ,
(N2-Reflow = Chain only and Mesh optional)
Converyor Height 900±20mm
Converyor Speed Range 300~2000mm/min
Lubrication Auto-Afflux Standard
Cooling System
Cooling Method   Standard:Forced-Air Type

Notes: D:Dual rails,Fixed mode is optional,the max width of PCB is 250*250mm;N:Nitrogen;L:the max width of PCB is 610mm
The above contents are subiect to change without further notice.

FEATURED PRODUCTS

Scroll to Top

Get Free Quote
