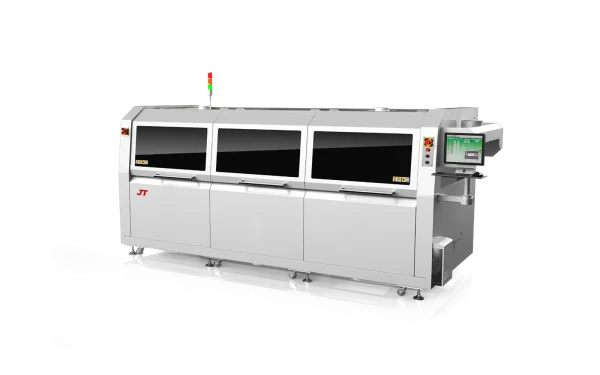

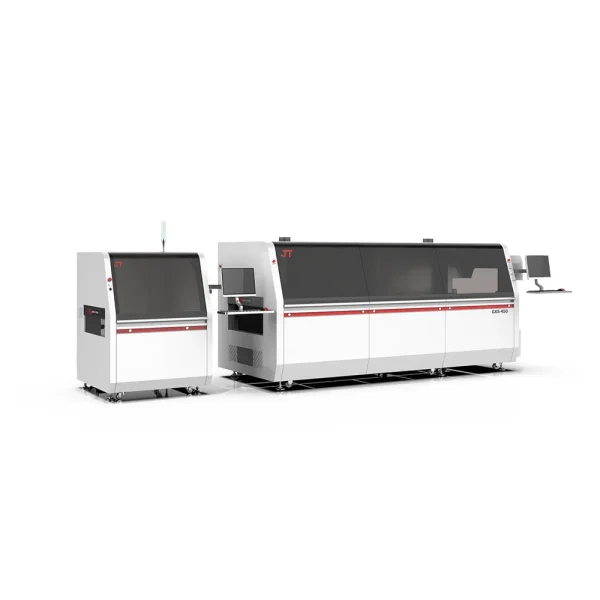

ATS Series Lead-Free Dual Wave Soldering System

● Closed loop with inverter control system to keep the stability and accuracy of the conveyor speed
● The assistant pressure device nearby the entrance to prevent the PCB from slipping
● Spray nozzle driving by stepping motor is to make sure the coating uniformly
● Module design of spray fluxer system and the design of nozzle always be perpendicular to rail,which can make sure the flux penetrates PCB easily
● Forced air cooling system to attain the cold-down slope as per lead-free required
● Conveyor angle is adjustable by manual
● Standard with hot air heating for preheating zones
● Module design suitable for SMT & THT component soldering
● Exhaust adopt centrifugal fan with double filters to avoid any flux drop to PCB
● The level of flux container is controlled by non-contact sensors to ensure nocorrosion and longer life
● Flux spray nozzle with self-cleaning system
● Standard with air knives to prevent flux expand to preheat zone
● Wave height control adopted with inverter, it can be set individually
● 1/4HP high power mechanical pump to meet the wave as high as 15mm
● Light & Sound alarm, emergency stop and over-load protection

Share to:

MODEL ATS-350
Dimension(L*W*H) mm 4401×1582×1735mm
Weight About 1800KG
Power Supply 3P5W AC 380V 50/60Hz   Option:3P5W AC 220V 50/60Hz
Operating power ≤9KW
Preheating temperature rise time ≤18min
Preheat temperature Room Temperature~230℃
Width range of PCB 50-350mm
PCB board component height Top 120mm,Bottom 25mm
PCB Converyor Direction L→R  Option:R→L
PCB inlet transport height 750±20mm(Entrance)
Transmission Speed 500~1800mm/min
Device Layout
Preheat zones number 3 Zones  Option: Top Preheating(MAX 3PCS)
Preheat mode Hot Air Preheating Infrared Preheating
Preheating temperature control mode PID+SSR
Control mode PC+PLC
Tin furnace capacity Lead-free:About 480KG
Working mode of tin furnace Mechanical Pump
Furnace liner material Castiron + Enamel  Option: All Titanium
Cooling mode Forced Air Cooling
The above contents are subject to change without further notice!

ATS-450

MODEL ATS-450
Dimension(L*W*H) mm 4401×1582×1735mm
Weight About 1800KG
Power Supply 3P5W AC 380V 50/60Hz   Option: 3P5W AC 220V 50/60Hz
Operating power ≤10KW
Preheating temperature rise time ≤18min
Preheat temperature Room Temperature~230℃
Width range of PCB 50-450mm
PCB board component height Top 120mm,Bottom 25mm
PCB Converyor Direction L→R  Option:R→L
PCB inlet transport height 750±20mm (Entrance)
Transmission Speed 500~1800mm/min
Device Layout
Preheat zones number 3 Zones  Option: Top Preheating(MAX 3PCS)
Preheat mode Hot Air Preheating Infrared Preheating
Preheating temperature control mode PID+SSR
Control mode PC+PLC
Tin furnace capacity Lead-free:About 550KG
Working mode of tin furnace Mechanical Pump
Furnace liner material Castiron + Enamel  Option: All Titanium
Cooling mode Forced Air Cooling
The above contents are subject to change without further notice!
