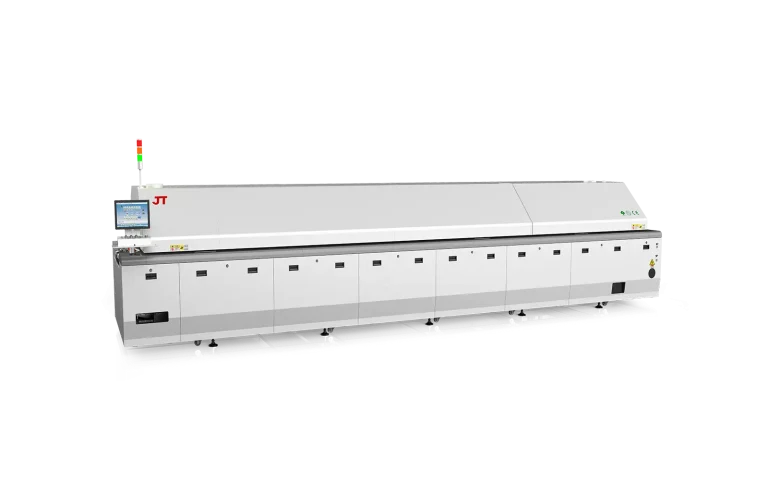

| MODEL | RS-600III/RS-600III-N |
| GENERAL | |
| Outside Dimension(L*W*H) | 4190 x 1430 x 1530mm |
| Weight | Approx. 1850KG/1950KG |
| Number Of Heating Zones | Up 6 / Bottom 6 |
| Length Of Heating Zones | 2295mm |
| Number Of Cooling Zones | Up 1 / Bottom 1 (Cool Air Conversion) |
| Exhaust Volume | 10 m³ / min x 2 (Exhausts) |
| Control System | |
| Electric Supply Required | 3 phase, 380V 50/60Hz (Optional: 3 phase, 400V/480V 50/60Hz ) |
| Electric Power Required | 48KW / 51KW |
| Power For Warm Up | 24KW / 26KW |
| Power Consumption | 6.5KW / 7KW |
| Warming Time | Approx. 20 minute |
| Temp. Setting Range | Room Temp. — 300℃ |
| Temperature Control Method | PID Close Loop Control + SSR Driving |
| Temperature Control Precision | ± 1.0℃ |
| Temperature Deviation on PCB | ± 1.5℃ (by JT Board Test Standard) |
| Commutated Element | Aluminium Alloy Plate |
| Data Storage | Various prameters and status are storable (80GB) |
| Abnormal Alarm | Abnormal Temperature (Extra-high / Extra-low Temp.) |
| Board Dropped Alarm | Tower Light: Yellow–Warming; Green-Normal; Red-Abnormal |
| Conveyor System | |
| Rail Structure | Subsection Integrated Type (Option ： Subsection Separate Control) |
| Max.Width Of PCB | 400mm (OPTION ：460mm) |
| Range Of Rail Width/Adjustment | 50~400mm / Motorized |
| Components Clearance | PCB Top 30mm/ Bottom 25mm |
| Converyor Direction | L→R (Option: R→L) |
| Fixed Rail Side | Front Rail Fixed (Option:Rear Rail Fixed) |
| PCB Transmission Agent | Air-Reflow =Chain + Mesh , ( N2-Reflow = Chain only and Mesh optional) |
| Converyor Height | 900±20mm |
| Converyor Speed Range | 300～2000mm/min |
| Lubrication Auto-Afflux | Standard |
| Cooling System | |
| Cooling Method | Standard：Forced-Air Type |
Notes: D：Dual rails，Fixed mode is optional,the max width of PCB is 250*250mm；N：Nitrogen；L：the max width of PCB is 610mm
The above contents are subiect to change without further notice.
