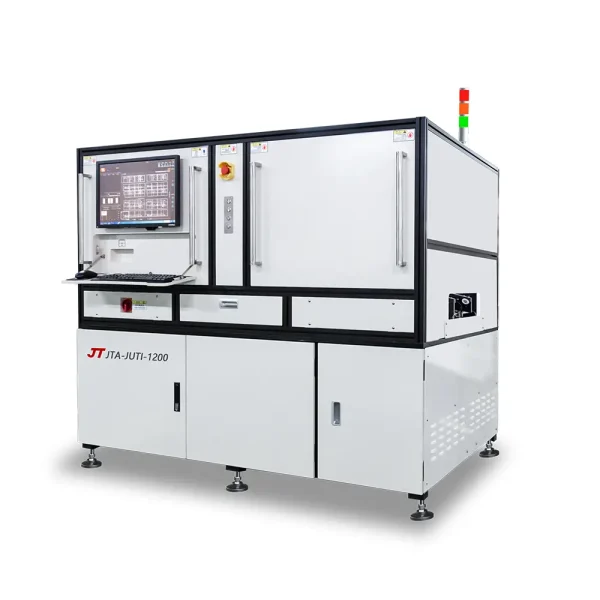

Solder Joint and Component Inspection AOI AOI1200

● For LED Industry Backlight, Long PCB etc solder paste inspection
● One-Step inspection, ensure inspection accuracy
● PCB Length max. 1.2m

Share to:

Model JTA-JUTI-1200
PCB Spec. Dimension 50x50mm – 1200x410mm
PCB Height Top 25mm ; Bottom 30mm
Optical Parameter Resolution 15μm(Std ); 10μm/12μm (Option)
Camera Spec. 500W High Speed Color Camera
Light-Source Multis pectral Super speed RGB+W Light Source
Hardware X,YTable Positioning Accuracy +/-0.01mm
X,Y Table Speed 1000mm/s
PCB Loading Defined Mode: R->L or L->R, L->L, R->R (Standard)
PCB Width Adjustment By Auto+ By Manual(Standard)
Operating System Win 7 Professional
Power 2.4KW
Dimension (W * D * H) 1900x1410x1640 mm
Weight (KG) Approx.1500KG
Software Inspection Method The Eigenvector Analysis & OCV Silkscreen Algorithm
Programming Mode 1.CAD Coordinate Loading
2.Component Database Auto-index
3.Auto-programming by Intelligent Software
Remote Control Network Monitoring: Offline Debugging, Online Monitoring & Manipulating, Remote Realized Examing
Option 1D/2D Barcode Scanner (H/W) PIN Equipment
Light Source Corrector
The above contents are subject to change without further notice!
