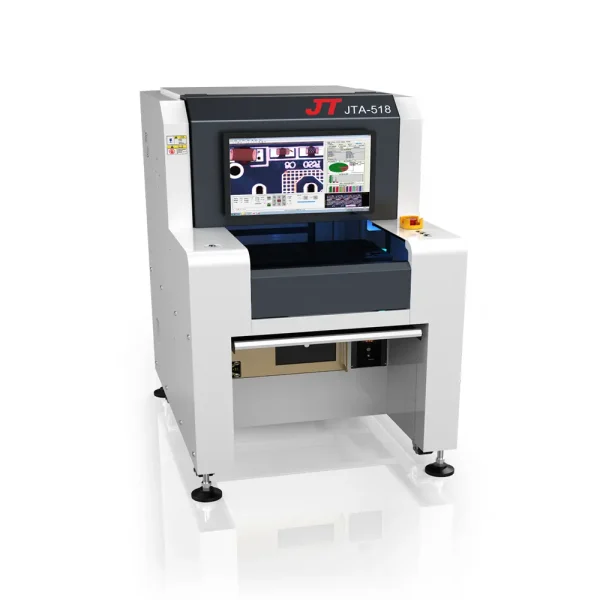

Solder Joint and Component Inspection AOI JTA 518D

● Double-table, realizing Mutual Board Enter Testing at No Stop Situation, saving the Time of Board Taking and putting
● High production efficiency
● Two different PCB inspected at the same time
● DIP process front and back simultaneously inspection

Share to:

Model JTA-518M
PCB Spec. PCB Dimension 50x60mm – 400x320mm
PCB Thickness 0.5mm – 5mm
PCB Component height Top 25mm,Bottom 110mm
PCB Warp ±3mm
Power 1.3KW
Optical
Parameter
Resolution 15μm(Standard);10/23μm Option
Speed 0.25 sec/FOV
Camera Spec. 5M High Speed Color Camera
Optical Lens Telecentric Optical Lens
Light-Source Multis pectral Super speed RGB+W Light Source
Inspection Category Component Inspection Missing, Rolling,Shifting,Polarity Error,Wrong Part, Damaged, Bended, PCB Abnormal, Residua, Glue Overflow
Solder Inspection Excess Solder, Insufficient Solder,Bridging,Lifting,Solder Balls,Soldering Abnormal
Special Inspection Items Can Check Solder Paste and Adhesive Glue Process Wave, Soldering Quality
Hardware Dimension (W*D*H) 905x1210x1472mm
Weight (KG) Approx. 550KG
The above contents are subject to change without further notice!

JTA-518L

Model JTA-518L
PCB Spec. PCB Dimension 50x60mm – 650x520mm
PCB Thickness 0.5mm – 5mm
PCB Component height Top 25mm,Bottom 110mm
PCB Warp ±3mm
Power 1.3KW
Optical
Parameter
Resolution 15μm(Standard);10/23μm Option
Speed 0.25 sec/FOV
Camera Spec. 5M High Speed Color Camera
Optical Lens Telecentric Optical Lens
Light-Source Multis pectral Super speed RGB+W Light Source
Inspection Category Component Inspection Missing, Rolling,Shifting,Polarity Error,Wrong Part, Damaged, Bended, PCB Abnormal, Residua, Glue Overflow
Solder Inspection Excess Solder, Insufficient Solder,Bridging,Lifting,Solder Balls,Soldering Abnormal
Special Inspection Items Can Check Solder Paste and Adhesive Glue Process Wave, Soldering Quality
Hardware Dimension (W*D*H) 1124x1547x1484mm
Weight (KG) Approx. 750KG
The above contents are subject to change without further notice!

JTA-518D

Model JTA-518D
PCB Spec. PCB Dimension 50x60mm – 250x320mm
PCB Thickness 0.5mm – 5mm
PCB Component height Top 25mm,Bottom 110mm
PCB Warp ±3mm
Power 1.7KW
Optical
Parameter
Resolution 15μm(Standard);10/23μm Option
Speed 0.25 sec/FOV
Camera Spec. 5M High Speed Color Camera
Optical Lens Telecentric Optical Lens
Light-Source Multis pectral Super speed RGB+W Light Source
Inspection Category Component Inspection Missing, Rolling, Shifting,Polarity Error,Wrong Part, Damaged, Bended, PCB Abnormal, Residua, Glue Overflow
Solder Inspection Excess Solder, Insufficient Solder,Bridging,Lifting,Solder Balls,Soldering Abnormal
Special Inspection Items Can Check Solder Paste and Adhesive Glue Process Wave, Soldering Quality
Hardware Dimension (W*D*H) 1136x1452x1405mm
Weight (KG) Approx. 600KG
The above contents are subject to change without further notice!
