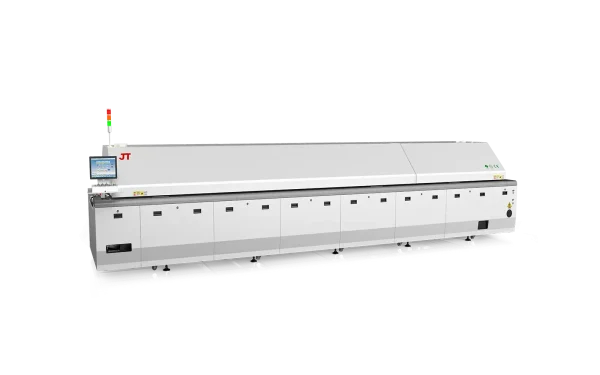

The surface mount soldering oven is a key piece of equipment in electronics manufacturing, used to solder surface mount components (SMCs) onto PCBs. It preheats the PCB and solder paste using controlled heating zones, melts the solder paste for bonding during the reflow stage, and then cools to solidify the joint. With precise temperature control and convection systems, it ensures uniform heating to prevent thermal damage. As an essential piece of equipment for high-density PCBs, it enables efficient and reliable assembly of modern electronic products such as smartphones and circuit boards.
| MODEL | RS-600III/RS-600III-N |
| GENERAL | |
| Outside Dimension(L*W*H) | 4190 x 1430 x 1530mm |
| Weight | Approx. 1850KG/1950KG |
| Number Of Heating Zones | Up 6 / Bottom 6 |
| Length Of Heating Zones | 2295mm |
| Number Of Cooling Zones | Up 1 / Bottom 1 (Cool Air Conversion) |
| Exhaust Volume | 10 m³ / min x 2 (Exhausts) |
| Control System | |
| Electric Supply Required | 3 phase, 380V 50/60Hz (Optional: 3 phase, 400V/480V 50/60Hz ) |
| Electric Power Required | 48KW / 51KW |
| Power For Warm Up | 24KW / 26KW |
| Power Consumption | 6.5KW / 7KW |
| Warming Time | Approx. 20 minute |
| Temp. Setting Range | Room Temp. — 300℃ |
| Temperature Control Method | PID Close Loop Control + SSR Driving |
| Temperature Control Precision | ± 1.0℃ |
| Temperature Deviation on PCB | ± 1.5℃ (by JT Board Test Standard) |
| Commutated Element | Aluminium Alloy Plate |
| Data Storage | Various prameters and status are storable (80GB) |
| Abnormal Alarm | Abnormal Temperature (Extra-high / Extra-low Temp.) |
| Board Dropped Alarm | Tower Light: Yellow–Warming; Green-Normal; Red-Abnormal |
| Conveyor System | |
| Rail Structure | Subsection Integrated Type (Option ： Subsection Separate Control) |
| Max.Width Of PCB | 400mm (OPTION ：460mm) |
| Range Of Rail Width/Adjustment | 50~400mm / Motorized |
| Components Clearance | PCB Top 30mm/ Bottom 25mm |
| Converyor Direction | L→R (Option: R→L) |
| Fixed Rail Side | Front Rail Fixed (Option:Rear Rail Fixed) |
| PCB Transmission Agent | Air-Reflow =Chain + Mesh , ( N2-Reflow = Chain only and Mesh optional) |
| Converyor Height | 900±20mm |
| Converyor Speed Range | 300～2000mm/min |
| Lubrication Auto-Afflux | Standard |
| Cooling System | |
| Cooling Method | Standard：Forced-Air Type |
Notes: D：Dual rails，Fixed mode is optional,the max width of PCB is 250*250mm；N：Nitrogen；L：the max width of PCB is 610mm
The above contents are subiect to change without further notice.
