| TRV Series | |
| MODEL | TRV-800-N |
| GENERAL | |
| Outside Dimension(L*W*H) | 5520 x 1430x 1530mm |
| Standard Color | Computer Grey |
| Weight | Approx. 2500KG |
| Number Of Heating Zones | Up 8(1IR) / Bottom 7 |
| Length Of Heating Zones | 3110mm（With Vacuum Area） |
| Number Of Cooling Zones | Up 3 / Bottom 3 (Cool Air Conversion) |
| Exhaust Volume | 10 m³ / min x 2 (Exhausts) |
| Electric Supply Required | 3 phase, 380V 50/60Hz (Optional: 3 phase, 220V 50/60Hz) |
| Electric Power Required | 67KW |
| Power For Warm Up | 32KW |
| Power Consumption | 10KW |
| Vacuum Level | 5 mbar～10 mbar |
| Warming Time | About Approx. 25 minute |
| Temp. Setting Range | Room Temp. — 300℃ |
| Temperature Control Method | PID Close Loop Control + SSR Driving |
| Temperature Control Precision | ± 1.0℃ |
| Temperature Deviation on PCB | ± 1.5℃ (by JT Board Test Standard) |
| Heating Element | Especial Heating elements For Long Life |
| Commutated Element | Aluminium Alloy Plate |
| Data Storage | Process Data and Status Storage |
| Abnormal Alarm | Abnormal Temperature (Extra-high / Extra-low Temp.) |
| Board Dropped Alarm | Tower Light: Yellow–Warming; Green-Normal; Red-Abnormal |
| Conveyor | chain conveyor |
| Rail Structure | Subsection Integrated Type |
| Rang Width Of PCB | Single Lane min70mm-max430mm；Dual Lane min70mm-max250mm |
| Rang Length Of PCB | min150mm-max300mm |
| chiller | Standard |
| Flux Collection System | Standard |
| N2 Control Device | Standard |
| Oxygen Analyser | Standard |
| The above contents are subject to change without further notice! | |

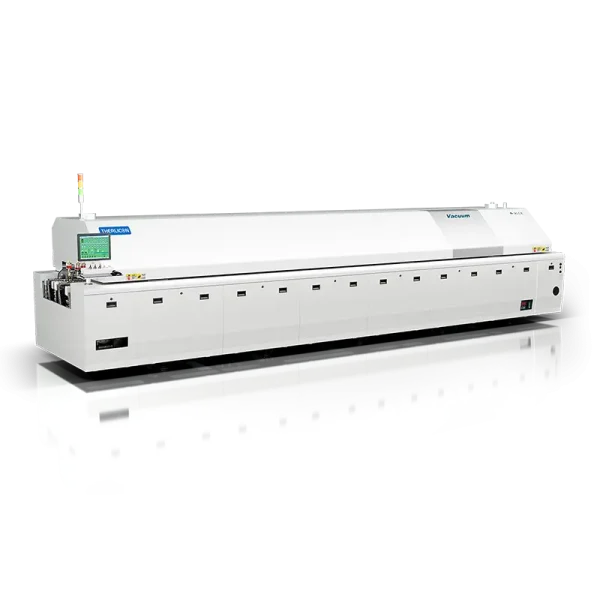

TRV Series Vacuum Assisted Reflow Oven
● Independent temperature control zone, suitable for different temperature profile;
● Solve the problem of bubble & void, <1% void area can be achieved;
● High efficient vacuum pump unit equipped for fast down time;
● 3- section conveyor : Heating zone ,vacuum unit and cooling zone , adjustable individually;
● High production throughput, cycle time 40-60sec, average;
● Equipped with high efficient flux collection system.
● High efficiency、No voids、 Low maintenance cost: Equipped with vacuum unit to solve the problem of void, bubble, etc. Voids area can reach < 1% by the vacuum pressure 10-5mbar.
● High accurate vacuum level and temperature profile: Temperature of each zone can be adjusted individually. Pressure under 10mbar still can meet TI≤90S, TP≤240°C. Infrared heating equipped in vacuum unit to meet high throughput settings.
