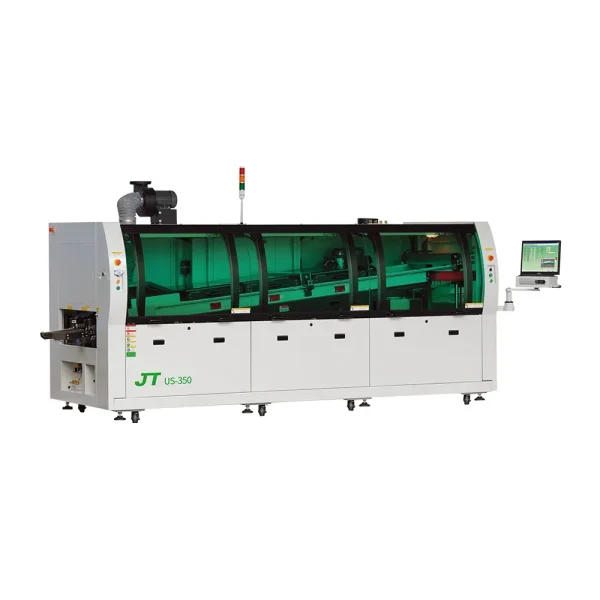

US Series Lead-free Wave Soldering System

● The movement of the nozzle realizes dual-axis linkage in the X.Y direction, and is driven by a stepping motor, with accurate positioning. The programming control method is flexible, which can meet the complex process requirements, such as partial secondary spraying, partial continuous spraying, etc.;
● Free combination of hot air and infrared preheating modules (3-stage preheating): When preheating PCB products with different process requirements, any combination of preheating methods can be used to improve the preheating ability;
● New tin furnace and crest nozzle design: Adjustable tin wave drop design, effectively reducing tin dross generation;
● The maximum transport capacity of the guide rail is 60KG: The innovative transportation chain assembly structure and support method provide more stable transportation speed and higher transportation carrying capacity;
● The cooling system adopts the upper and lower blowing structure design, and the cooling efficiency is flexibly controlled.

Share to:

MODEL US-350
GENERAL
Wave Soldering Outside Dimension(L*W*H) 4350×1600×1730mm
Power Supply 3P5W 380V AC 50/60Hz 100A Option:3P5W 220V AC 50/60Hz 150A
Power demand 80KW     (Total Power * 1.2 Safety Factor) Hot Air
Electrical Control
Total power 45KW  (+6KW/PCS For Each Additional Preheating Module)
Operating power ≤9KW
Control mode PC+PLC
Preheating System
Preheat mode Hot Air IR
Speed regulation mode Stepless Frequency Control N/A
Preheat zones number 3 Option: Upper preheating(MAX 3PCS)
Preheat zone length 1800mm(2480mm optional 4 preheat)
Preheat temperature Room Temperature ~250℃
Welding System
Working mode of tin furnace Mechanical Pump
Power of heating tube of tin furnace 14.5KW
Tin furnace capacity Lead-free: About 480KG
MAX temp of tin furnace MAX: 300℃
Temp. control method PID+SSR
Wave driving power 1/4 HP×2  3P 220VAC
Warming up time About 180 min(Set:250℃)
PCB Transport System
Width range of PCB 50-350mm
PCB board component height Top 90mm,Bottom 25mm
PCB transmission speed 300~1800mm/min
PCB inlet transport height 750±20mm Option: Booster Pad 100mm 150mm 200mm 250mm
Transport guide rail inclination Factory:5.5°±0.2°(4°— 7°Adjustable)
Transmission motor power 90W  3P 220VAC
N2 System (Option)
nitrogen consumption 25m³/h  below 1000ppm
pressure nitrogen source 0.5~0.8MPa
Others
Flux Automatic Addition Equipped with corrosion-resistant air-operated diaphragm pump
Spray Flow 20~100ml/min
Exhaust pipe dimeter Φ200mm
Air cooler Option 2HP

US-450

MODEL US-450
GENERAL
Wave Soldering Outside Dimension(L*W*H) 4350×1600×1730mm
Power Supply 3P5W 380V AC 50/60Hz 63A Option:3P5W 220V AC 50/60Hz 110A
Power demand 80KW    (Total Power * 1.2 Safety Factor) Hot Air
Electrical Control
Total power 45KW  (+6KW/PCS For Each Additional Preheating Module)
Operating power ≤10KW
Control mode PC+PLC
Preheating System
Preheat mode Hot Air IR
Speed regulation mode Stepless Frequency Control N/A
Preheat zones number 3 Option: Upper preheating(MAX 3PCS)
Preheat zone length 1800mm(2480mm optional 4 preheat)
Preheat temperature Room Temperature~250℃
Welding System
Working mode of tin furnace Mechanical Pump
Power of heating tube of tin furnace 14.5KW
Tin furnace capacity Lead-free:About 550KG
MAX temp of tin furnace MAX: 300℃
Temp. control method PID+SSR
Wave driving power 1/2 HP×2  3P 220VAC
Warming up time About 180 min(Set:250℃)
PCB Transport System
Width range of PCB 50-450mm
PCB board component height Top 90mm,Bottom 25mm
PCB transmission speed 300~1800mm/min
PCB inlet transport height 750±20mm Option: Booster Pad 100mm 150mm 200mm 250mm
Transport guide rail inclination Factory:5.5°±0.2°(4°— 7°Adjustable)
Transmission motor power 90W  3P 220VAC
N2 System (Option)
nitrogen consumption 25m³/h below 1000ppm
pressure nitrogen source 0.5~0.8MPa
Others
Flux Automatic Addition Equipped with corrosion-resistant air-operated diaphragm pump
Spray Flow 20~100ml/min
Exhaust pipe dimeter Φ200mm
Air cooler Option 2HP

US-610

MODEL US-610
GENERAL
Wave Soldering Outside Dimension(L*W*H) 4494×1955×1730mm
Power Supply 3P5W 380V AC 50/60Hz 150A Option:3P5W 220V AC 50/60Hz 200A
Power demand 90KW      (Total Power * 1.5 Safety Factor) Hot Air
Electrical Control
Total power 50KW  (+9KW/PCS For Each Additional Preheating Module)
Operating power ≤13KW
Control mode PC+PLC
Preheating System
Preheat mode Hot Air IR
Speed regulation mode Stepless Frequency Control N/A
Preheat zones number 3 Option:Upper preheating(MAX 4PCS)
Preheat zone length 1800mm(2480mm optional 4 preheat)
Preheat temperature Room Temperature~250℃
Welding System
Working mode of tin furnace Mechanical Pump
Power of heating tube of tin furnace 18KW
Tin furnace capacity Lead-free:About 800KG
MAX temp of tin furnace MAX: 300℃
Temp. control method PID+SSR
Wave driving power 1/2 HP×1+1HP×1  3P 220VAC
Warming up time About 180 min(Set:250℃)
PCB Transport System
Width range of PCB 60-610mm
PCB board component height Top 90mm,Bottom 30mm
PCB transmission speed 300~1800mm/min
PCB inlet transport height 750±20mm Option:Booster Pad 100mm 150mm 200mm 250mm
Transport guide rail inclination Factory:5.5°±0.2°(4°— 7°Adjustable)
Transmission motor power 90W  3P 220VAC
N2 System (Option)
nitrogen consumption 25m³/h below 1000ppm
pressure nitrogen source 0.5~0.8MPa
Others
Flux Automatic Addition Equipped with corrosion-resistant air-operated diaphragm pump
Spray Flow 20~100ml/min
Exhaust pipe dimeter Φ200mm
Air cooler Option 2HP
