Efficient and Cost-Effective PCB Assembly with Small Wave Soldering Machines

Small wave soldering machines are essential tools for PCB assembly and soldering electronic components. Shenzhen JT Automation Equipment Co., Ltd. is a leading manufacturer of small-wave soldering machines, providing efficient and reliable solutions for various soldering applications. Their machines deliver excellent performance and precision with advanced technology and high-quality materials, ensuring superior results and satisfied customers. Let’s look at the features and benefits of small-wave soldering machines.

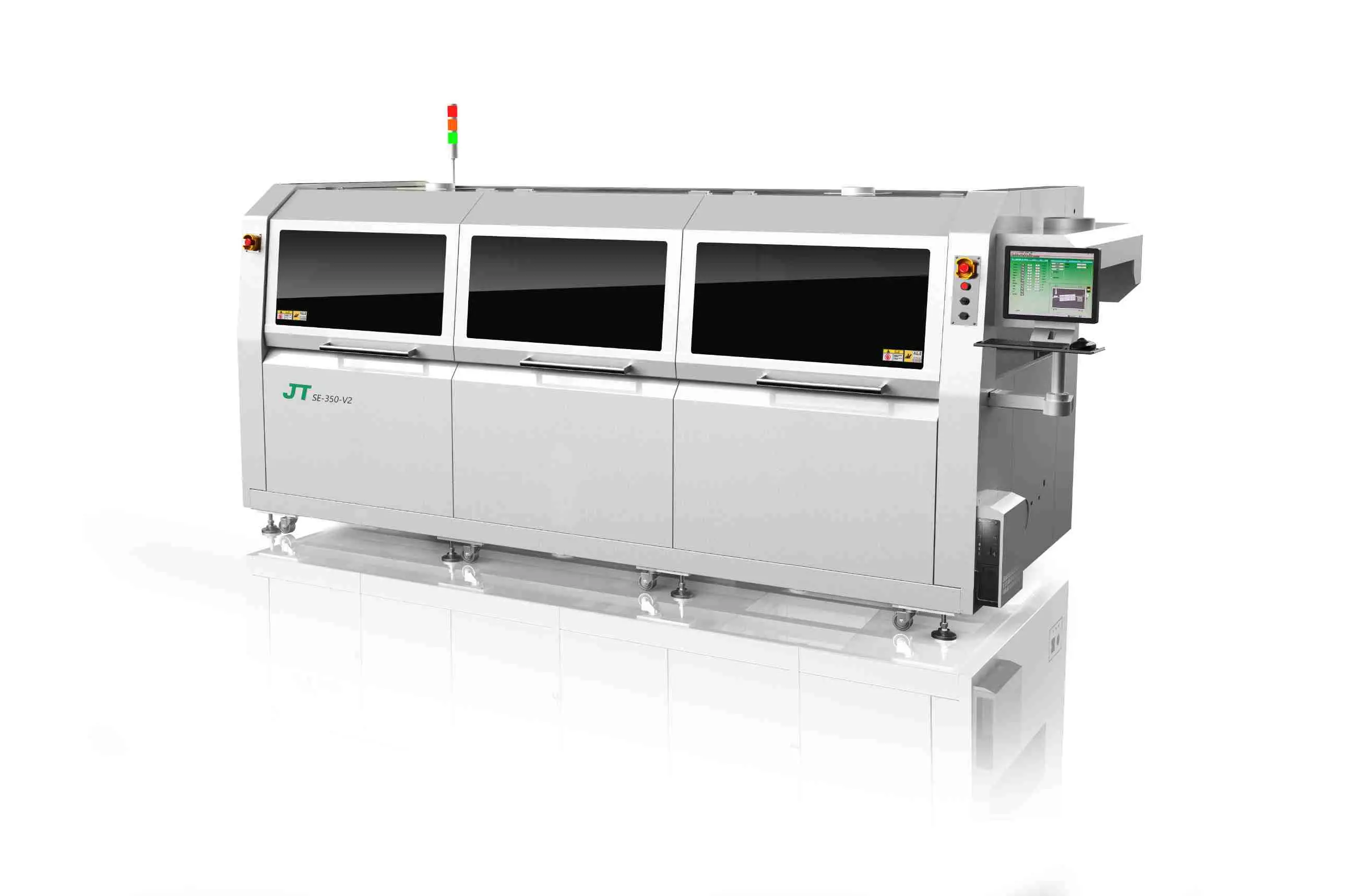

small wave soldering machine



What is a small wave soldering machine?

Printed circuit boards typically require specialized soldering equipment called small wave soldering machines (PCBs). The machine is excellent for soldering through-hole components and mixed-technology boards because it applies the solder with a short wave of molten solder. With their portable size, tiny wave soldering machines are a good fit for shops and factories with restricted floor space.

Benefits of using a small wave soldering machine:

Cost-effective: Small to medium-sized organizations can afford small-wave soldering machines since they are frequently less expensive than their more costly equivalents.

Superior accuracy: Components are placed on the PCB firmly and precisely thanks to the high-precision soldering offered by this equipment.

Consistently high-quality soldering: Small wave soldering machines can provide consistent soldering quality, which lowers flaws and raises the product’s overall quality.

Rapid soldering rate: These machines can do tasks quickly and effectively because of their fast soldering speeds.

Energy-efficient: The energy-efficient design of small wave soldering equipment lowers the carbon footprint and reduces electricity expenses.

Factors to consider when choosing a small wave soldering machine:

  • The parameters of the soldering machine, such as temperature, amplitude, and wave width, will be adjusted according to the requirements of the soldering job.
  • The size and capacity of the small wave soldering machinenecessary to meet production demand are, in turn, determined by the required output volume.
  • The size and complexity of the printed circuit board (PCB) will dictate the type and dimensions of the machinery required to achieve consistent, precise soldering.
  • Consider the manufacturer’s track record and the quality of their after-sale services, such as replacement parts, tutorials, and tech support.
  • Consider the machine’s safety features, such as a ventilation system, an automatic shutoff, and emergency buttons.

Applications of small wave soldering machines in PCB assembly

  1. Items with drilled-out holes:Through-hole components such as resistors, capacitors, and diodes are commonly soldered to PCBs using small wave soldering equipment.
  2. Various technological methods:Through-hole and surface mount technology (SMT) components can be soldered using the same small wave soldering machine.
  3. Elements of the SMT:SMT components, including ICs, transistors, and LEDs, are soldered using traditional irons and smaller wave soldering machines.
  4. Soldering selection:Selective soldering is possible with small wave soldering machines, which allow for the targeted application of solder to some areas of the printed circuit board.

Conclusion:

PCB assembly and soldering of electronic components with small wave soldering machines from Shenzhen JT Automation Equipment Co., Ltd. is cost-effective, efficient, and dependable. For precise and reliable soldering, their devices are the best option for enterprises of any size. Wave soldering machines from Shenzhen JT Automation Equipment are highly sought after by the electronics industry due to their cutting-edge design and premium components.
