In today’s electronics manufacturing industry, one of the most commonly used surface treatment processes for PCBs is electroless nickel immersion gold (ENIG). Due to its excellent flatness, high oxidation resistance, and suitability for small-pitch components, ENIG is widely used in products such as HDI boards, BGA assemblies, automotive electronics, medical devices, and telecommunications equipment.
As electronic components become increasingly complex and compact, printed circuit boards (PCBs) require more and more reflow soldering cycles. During surface mount technology (SMT) assembly, component replacement, maintenance operations, and repeated thermal cycling, PCBs undergo multiple high-temperature reflow soldering processes. Although ENIG exhibits good performance in many demanding applications, prolonged exposure to repeated thermal cycling can affect its solderability, mechanical properties, and reliability.
What happens during multiple reflow soldering cycles?
Reflow soldering: The process of heating solder paste to melt it, thereby forming an electrical connection between the component and the PCB pads. In lead-free manufacturing, typical reflow soldering peak temperatures range from 240°C to 260°C, which can cause significant thermal stress on the PCB surface.
The ENIG coating consists of two metal layers:
Chemical nickel plating: forms a diffusion barrier between the copper and the solder.
Immersion gold: oxidizes the nickel before soldering.
During soldering, the thin gold layer melts into solder, which then contacts the nickel layer beneath the gold layer. This interface changes continuously with repeated reflow soldering, which can affect long-term reliability.
Intermetallic Compound Growth

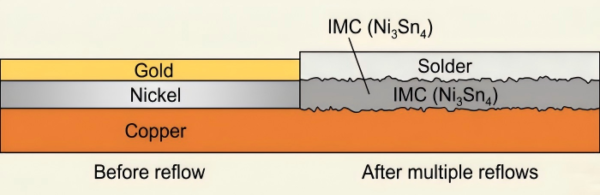

A significant impact of repeated reflow cycles on ENIG is the gradual formation of intermetallic compounds (IMCs).
When molten solder comes into contact with the nickel layer, nickel-tin compounds (Ni₃Sn₄) are formed at the solder joint interface. IMC growth is crucial for solder joint formation; however, excessive IMC formation can negatively impact solder joint reliability.
Studies with repeated reflow soldering show that each reflow increases the IMC layer thickness, leading to an increase in solder joint resistivity. Consequently, the solder joint becomes brittle under thermal stress, resulting in decreased resistance to mechanical fatigue.
Excessive IMC growth can lead to:
Solder joint brittleness
Reduced mechanical strength
Higher risk of cracking in piping systems
Reduced thermal shock tolerance and stability
Generally, IMC growth on ENIG is slower than with other copper-based coatings, but continuous reflow cycles can still cause solder joints to weaken over time, especially in harsh operating environments.
Phosphorus Enrichment and Interface Degradation
In the ENIG process, the phosphorus content in the electroless nickel plating layer is at a medium to high level. Repeated heating causes phosphorus to accumulate at the interface, while nickel diffuses into the solder.
This phosphorus-rich region becomes brittle under repeated heat exposure, potentially leading to interface failure. During use, with the application of additional stress, cracks may form at poorly bonded interfaces.
Phosphorus enrichment leads to:
Weak solder adhesion
Reduced wettability
Brittle fracture zones
Poor solder joint adhesion—solder joint failure
Therefore, stable ENIG chemistry and good plating control are crucial for ensuring good assembly performance.
Black Pads and Solderability Issues
A common reliability problem in the ENIG process is the “black pad” phenomenon. When the nickel layer is over-etched during immersion gold, a phosphorus-containing black surface forms, interfering with solder bonding and resulting in the “black pad” phenomenon.
While black pad defects may not always be apparent during inspection, reflow soldering exacerbates the problem because multiple reflow cycles add thermal stress to already fragile solder joints. Sometimes, a solder joint may initially appear good but fail due to vibration, thermal cycling, or mechanical shock.

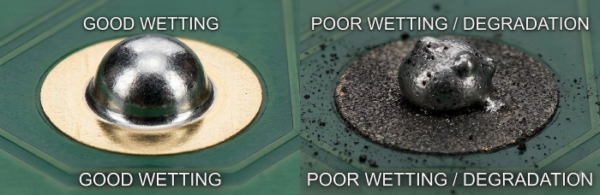

Besides black pads, multiple reflow cycles can also lead to decreased solderability for the following reasons:
Nickel oxidation
Surface contamination
Excessive IMC formation
Reduced wetting properties
As electronic products become increasingly portable, miniaturized, and complex, reliability issues are becoming increasingly important.
Challenges of Lead-Free Assembly
Using lead-free solders accelerates reflow cycles. Compared to traditional tin-lead solders, lead-free soldering processes require higher temperatures and longer above-the-liquidity hold times.
These extreme high-temperature conditions accelerate:
Nickel dissolution
Growth of intermetallic compounds
Oxidation
Thermal fatigue
Therefore, under lead-free conditions, ENIG surfaces are more prone to performance degradation after thermal cycling. This is particularly important for long-life applications such as automotive, aerospace, or industrial electronics.
How to Reduce Reflow-Related Failures
Multiple reflow soldering conditions typically require manufacturers to take various precautions to ensure the reliability of ENIG surface treatments.
Strict Process Control
Nickel thickness, gold thickness, phosphorus content, and plating chemistry are carefully monitored to minimize the possibility of black pads and solderability issues.
Optimized Reflow Profiles
Avoiding unnecessary overheating is crucial. One of the best ways for manufacturers to reduce peak temperatures, above-the-liquidity hold times, and unnecessary rework is to limit these extreme conditions as much as possible.
Proper Storage and Humidity Management
Humidity and contamination can adversely affect soldering performance. Proper storage, using a dry cabinet, and handling humidity-sensitive components can improve reliability during repeated reflow soldering processes.
Other Surface Finishes
If high-temperature performance is a critical requirement for the application, some manufacturers may consider using ENEPIG or immersion silver, depending on assembly requirements.
ENIG remains one of the most reliable and widely used PCB surface treatment processes in today’s electronics manufacturing industry. Its high flatness, good corrosion resistance, and compatibility with fine-pitch PCBs enable its application in high-density PCBs and advanced SMT assembly processes.
However, multiple reflow cycles can introduce several reliability issues. Repeated heating promotes the formation of intermetallic compounds, phosphorus enrichment, and solder joint embrittlement, and in some cases, exacerbates potential black pad problems. In lead-free environments, these effects are further amplified due to the higher temperatures used during processing.
To ensure long-term solder joint reliability, manufacturers need to optimize ENIG plating quality, reflow profiles, and thermal management throughout the soldering and assembly process.
As electronic products become increasingly dense and complex, collaborating with experienced PCB manufacturing partners is becoming increasingly important. PCBCart provides professional PCB assembly and manufacturing services with a rigorous quality control system, meeting the high-reliability requirements of the electronics manufacturing industry.
