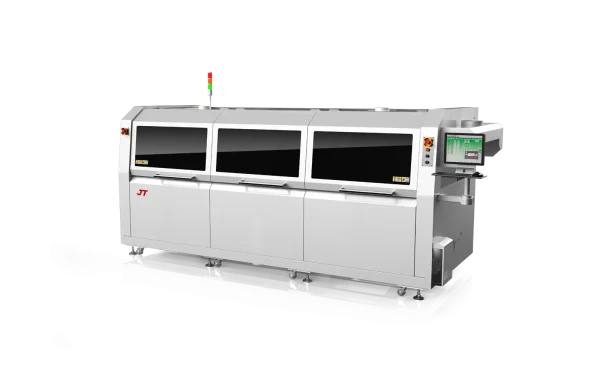

Wave soldering machines are key equipment in the electronics manufacturing industry for automating the soldering of through-hole components. Based on their structure, wave type, soldering method, and applicable scale, they can be divided into several categories, including single-wave, dual-wave, selective wave, and micro/small wave soldering machines. Different models vary significantly in efficiency, accuracy, cost, and applicable scenarios. Understanding their characteristics helps companies choose the right model.
Single-wave soldering machines are the most basic and widely used type. They are simple in structure, low in cost, and easy to maintain. They rely on a single turbulent solder wave to complete the soldering process, making them suitable for single-sided boards, common through-hole components, and mass production of simple products. Single-wave soldering machines have a low operating threshold and stable operation, meeting the conventional soldering needs of home appliances, power supplies, and industrial control boards. However, because there is only one solder wave, high-density, fine-pitch components are prone to problems such as missed soldering, cold solder joints, and bridging, resulting in relatively limited soldering quality stability.
Dual-wave soldering machines add a smooth wave to the single-wave design, consisting of a front turbulent wave and a rear smooth wave. The strong initial wave impact breaks up solder pad oxidation, eliminates air bubbles, and improves solder wetting; the smooth and uniform subsequent wave refines solder joints and reduces solder spikes and bridging. Dual-wave soldering machines offer more stable soldering quality and are suitable for double-sided boards, densely packed components, and complex circuit boards, making them the mainstream configuration for small and medium-sized electronics factories. While their cost is slightly higher than single-wave soldering machines, the yield improvement is significant, resulting in a higher overall cost-performance ratio.
Selective wave soldering machines are high-precision, intelligent devices that use nozzle-based spot welding, contacting only the areas requiring soldering with solder waves, without affecting surrounding components or the PCB surface. They feature programmable control, precise temperature control, and excellent solder joint consistency, making them suitable for high-requirement products in precision electronics, automotive electronics, and medical equipment, especially for small-batch, multi-variety, and flexible production. Selective wave soldering produces less solder dross, less pollution, and a high yield, but the equipment is expensive and complex to debug, making it more suitable for mid-to-high-end manufacturing scenarios.
Mini and small wave soldering machines are compact, require less space, and have small solder pot capacity, primarily targeting R&D laboratories, school teaching, and small-batch prototyping and trial production. Microwave soldering machines are easy to operate and move, making them suitable for new product verification; small-scale machines offer stable transmission and thorough preheating, balancing efficiency and flexibility, and are a common choice for research institutions and small-batch production units.
Overall, single-wave soldering machines excel in low cost and high efficiency; dual-wave soldering machines balance quality and capacity; selective wave soldering machines prioritize high precision and flexible production; and micro and small-scale machines meet the needs of R&D and small-batch production. Enterprises should select the appropriate wave soldering machine based on product complexity, production scale, and quality requirements to achieve stable, efficient, and economical welding production.
