In the ever-evolving world of electronics manufacturing, the need for reliable and efficient soldering techniques is paramount. JT’s selective wave soldering has emerged as a game-changer, offering enhanced precision and control in the soldering process. This article delves into the fascinating world of selective wave soldering, exploring its benefits and highlighting some remarkable systems JT Shenzhen has to offer in the market.



Mini Selective Wave Soldering System

The mini selective wave soldering system introduces automated soldering specifically designed for double-side PCB, eliminating the need for manual intervention. With seamless efficiency, solder is effortlessly applied to both sides of the PCB, ensuring reliable connections.



In addition to automated soldering, this system provides offline programming and Gerber file compatibility. This feature allows users to conveniently utilize offline programming, enabling them to apply Gerber files with ease. By streamlining the programming process, manufacturers can achieve greater efficiency and accuracy in their operations.



The mini-selective wave soldering system also simplifies the figure-loading process. Through intuitive graphic programming, figures can be swiftly loaded onto the machine, even without initial PCB data. This system ensures precise control over flux spraying resulting in minimal flux consumption.



The independent temperature control system enables separate temperature controls for top and bottom preheating. By utilizing infrared heating, heating efficiency is enhanced, and temperature uniformity is achieved, guaranteeing consistent soldering results.



Employing a CCD camera, the system meticulously monitors solder processing from start to finish. With accuracy and precision, manufacturers can trace and evaluate the soldering quality, making necessary adjustments as needed.

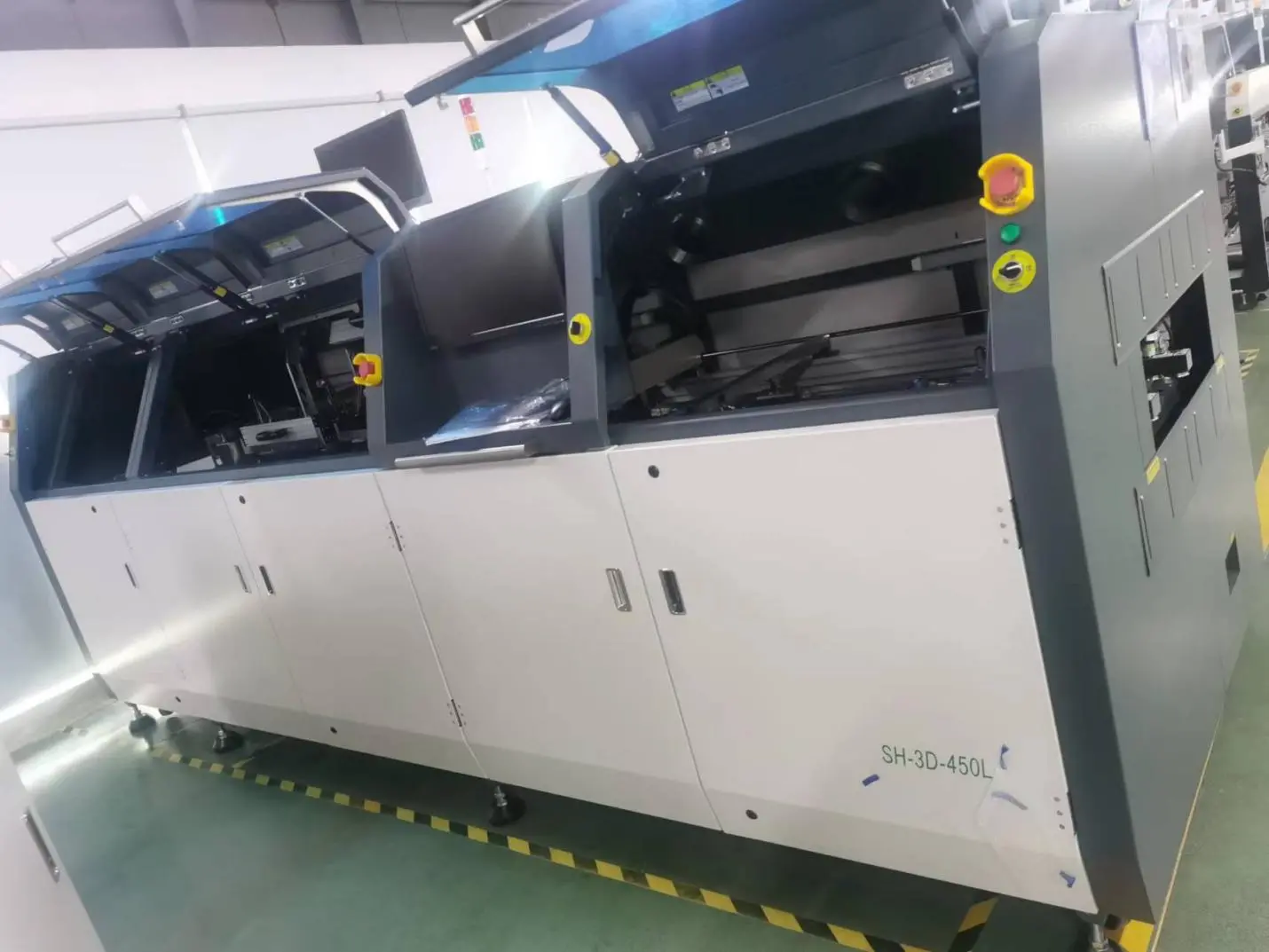

SH-3D Integrated Selective Wave Soldering

The SH-3D integrated selective wave soldering system is a cutting-edge technology that combines multiple functions into a single machine, streamlining the entire manufacturing process and significantly reducing production time.



The Spray Fluxer, Preheating, and Soldering modules are seamlessly integrated, offering a customizable configuration that can adapt to specific production needs. Whether it is the point soldering module or the group soldering module, you have the freedom to mix and match them as required.



In terms of efficiency, the SH-3D system takes the lead with its highly efficient selective soldering module. It ensures precise and reliable soldering, contributing to superior quality in the manufacturing process.



Benefits of Using Selective Wave Soldering

Improved Precision and Control: selective wave soldering enables targeted solder application, ensuring precise connections without excess solder bridging or splattering. The selective nature of this technique minimizes the risk of damage to nearby sensitive components, enhancing the overall quality.



Efficiency: By precisely controlling the solder application, these selective soldering systems reduce the amount of solder used, resulting in cost savings and improved efficiency. Moreover, the integration of advanced systems allows for faster production cycles.



Versatility in Component Assembly: With these selective soldering systems, manufacturers can accommodate various component sizes and configurations on a single board. This versatility eliminates the need for multiple soldering processes, simplifying the assembly line and reducing setup time.



Minimized Heat Exposure: Traditional wave soldering subjects the entire board to high temperatures, which can be detrimental to heat-sensitive components. Selective wave soldering minimizes heat exposure by directing the solder flow precisely where it is needed, reducing the risk of thermal damage.



Conclusion

Selective wave soldering has revolutionized the electronics manufacturing industry by offering improved precision, efficiency, and control in the soldering process. These selective soldering are just two examples of the remarkable technologies available by JT. For more details, do check out JT’s website to learn more about their selective wave soldering systems!
