Enhance Quality Control with Automatic Optical Inspection Equipment Technology

Are you looking for ways to improve your manufacturing process and enhance your quality control? Look no further than JT Automation’s automatic optical inspection equipment (AOI). With this cutting-edge technology, you can streamline your production line and ensure that your products meet the highest standards. Here’s everything you need to know about AOI and how it can benefit your business.

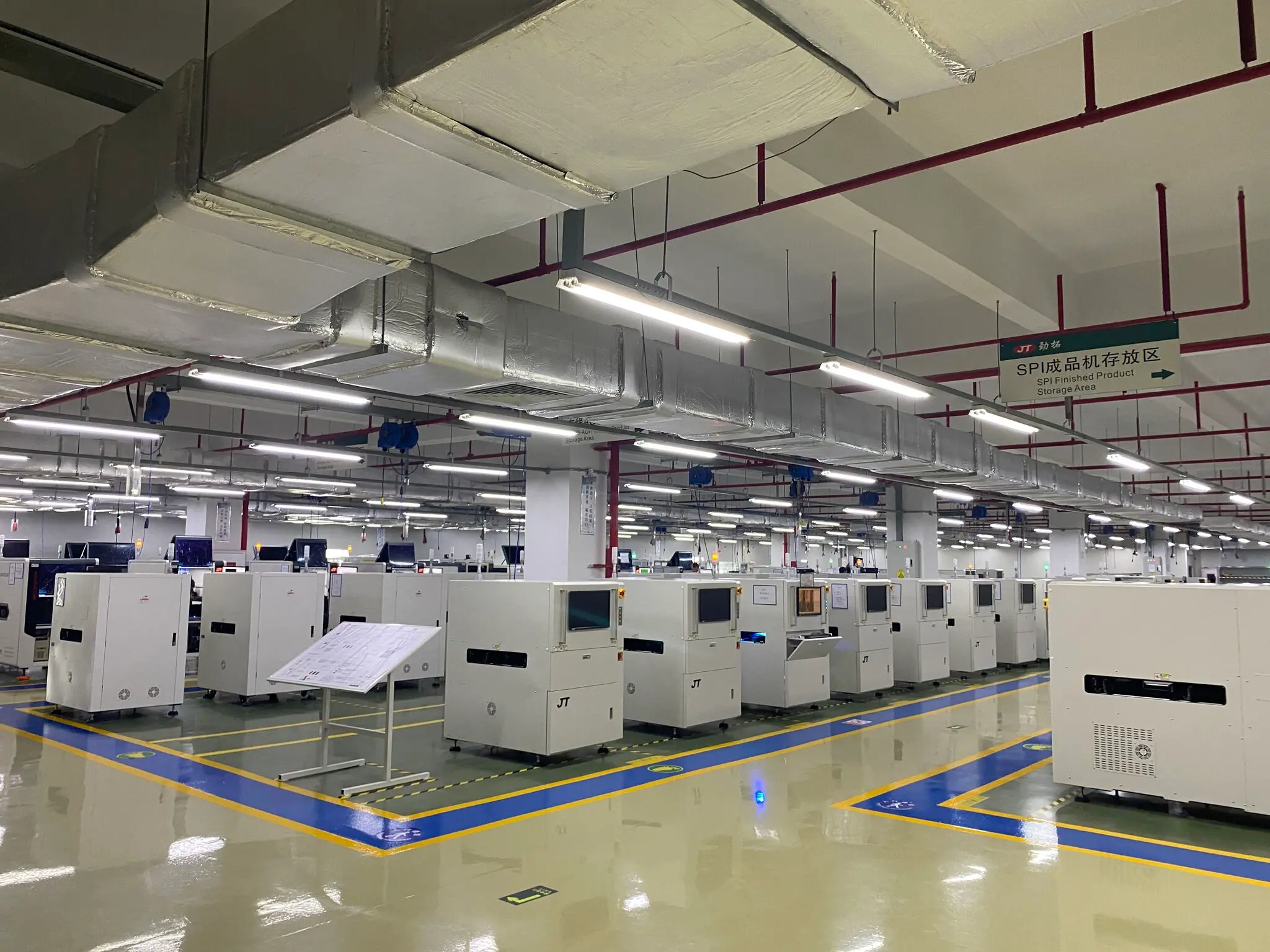

automated optical inspection equipment


What is automatic optical inspection equipment?

Automatic optical inspection is a process that uses visual inspection equipment to detect defects in electronic components and printed circuit boards (PCBs). AOI systems use cameras and software to identify issues such as missing components, incorrect polarity, and solder defects. This technology allows for high-speed inspection and provides a more accurate and consistent analysis compared to manual inspection.


How Does Automatic optical inspection work?

Automatic optical inspection equipment consists of a conveyor belt that transports the PCBs through the inspection system. The system includes multiple cameras that capture images of the board from different angles. The images are then analyzed using advanced software algorithms that detect defects and compare them to a pre-set standard. Any deviations from the standard are flagged and sent to a technician for further analysis.


Advantages of utilizing automatic optical inspection equipment

Below are some of the advantages of using AOI equipment :

  1. Enhanced Quality Control: Automatic Optical Inspection equipment can detect defects, such as soldering issues, component misplacements, and surface defects, with high accuracy and precision, ensuring that only high-quality PCBs are produced.
  2. Increased Production Efficiency: Automatic optical inspection equipment can inspect PCBs at high speeds, reducing the need for manual inspections and significantly increasing production throughput, resulting in higher productivity and a faster time-to-market.
  3. Cost-effective manufacturing: they can help identify and rectify defects early in the production process, reducing the cost associated with rework, scrap, and customer returns, leading to improved yield rates and cost savings.
  4. Reduced Human Error: AOI eliminates human subjectivity and variability in inspection, minimizing the chances of missing defects that may be overlooked by human operators and leading to more consistent and reliable inspection results.
  5. Improved Traceability and Data Analysis: Automatic optical inspection equipment systems can generate comprehensive inspection reports and data logs, enabling manufacturers to track and analyze production trends, identify recurring issues, and implement process improvements for continuous quality enhancement.


With its high speed, accuracy, cost savings, flexibility, and ability to enhance product quality, automatic optical inspection equipment has transformed the way electronic devices are inspected and ensured their reliability. As technology continues to advance, Automatic optical inspection equipment is expected to evolve further, leading to even more innovative and efficient inspection solutions for the manufacturing industry. Manufacturers who invest in AOI equipment are likely to gain a competitive edge by producing high-quality, reliable electronic devices that meet the ever-increasing demands of the market.



In conclusion, automatic optical inspection equipment has become an essential tool in the modern manufacturing industry. Are you looking for a trusted company to provide you with state-of-the-art automatic optical inspection equipment? JT Automation Equipment Co., Ltd. has got you covered. For more information about their products and services, contact oversea-sales@jt-ele.com.
