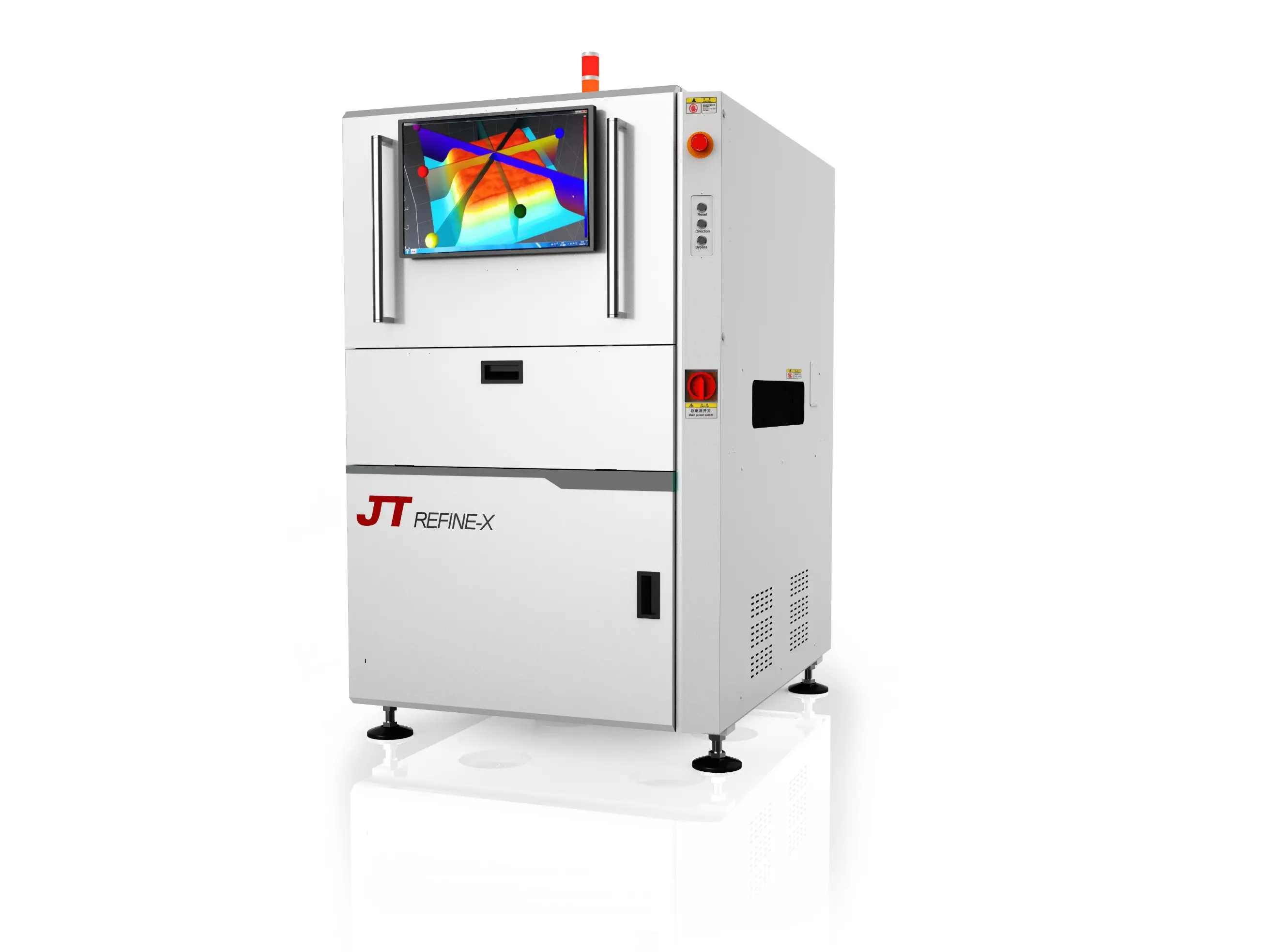

The 3D Solder Paste Inspection (SPI) Machine is an efficient and reliable tool used in the production of electronic components. It is designed to quickly and accurately measure the quality of solder paste deposition and the accuracy of component placement on printed circuit boards. This machine is capable of detecting a variety of defects in the solder paste, including shorts, opens, insufficient coverage, and misalignment, among others. It is an ideal choice for any production line that is looking for a reliable and accurate way to inspect solder paste deposition.
What does the 3D Solder Paste Inspection Machine Do?
The 3D solder paste inspection machine is able to inspect the entire area of the PCB to detect any potential defects in the solder paste deposits. It is able to detect solder paste deposits that are either too thick or too thin, as well as any irregularities in the shape or size of the paste deposits. It is also able to detect any misalignment in the PCB components, and it can be used to detect any possible shorts or opens. In addition, the 3D SPI machine is able to detect any contaminants that may be present on the board.
Key features of 3D solder paste inspection:
- Accuracy: The 3D solder paste inspection machine is designed to provide accurate and repeatable measurements. It is capable of measuring down to 1 mm, allowing for precise and repeatable results.
- Speed: The 3D SPI machine is designed for high-speed production lines. It is capable of measuring up to 20 boards per minute, allowing for quick and efficient production.
- Defect Detection: The 3D solder paste inspection machine is capable of detecting a wide range of defects in the solder paste, including shorts, opens, insufficient coverage, and misalignment.
- Size: The 3D SPI machine has a small footprint, making it suitable for use in any production environment. The dimensions of the machine are 44” x 34” x 63”.
- Image Acquisition: The machine has a high-resolution camera capable of capturing images with a resolution of up to 25 microns. The camera is also capable of detecting soldering defects, such as bridging and solder balls.
- Processing Speed: The machine is capable of processing up to 3,000 images per second. This allows it to quickly detect any defects and ensure the quality of the solder paste.
- Software: The machine comes with a user-friendly software package that allows the user to review and analyze images quickly and easily. The software is also capable of generating reports and making recommendations for improved solder paste quality.
Conclusion:
The 3D Solder paste inspection machine is an excellent choice for any production environment. It is small and compact, yet powerful and accurate. Shenzhen JT Automation Equipment Co., Ltd. is confident that this product will provide you with the reliable, efficient, and accurate inspection process you need for your production line. With its high precision and advanced technology, JT 3D solder paste inspection system will help you quickly identify any issues and take the necessary steps to maintain the highest quality of production. We look forward to working with you to help you get the most out of your investment.
